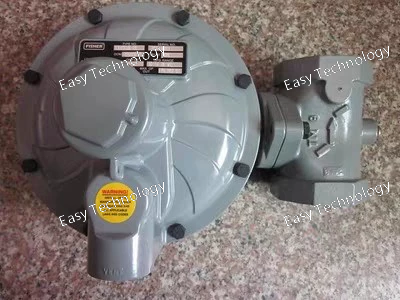

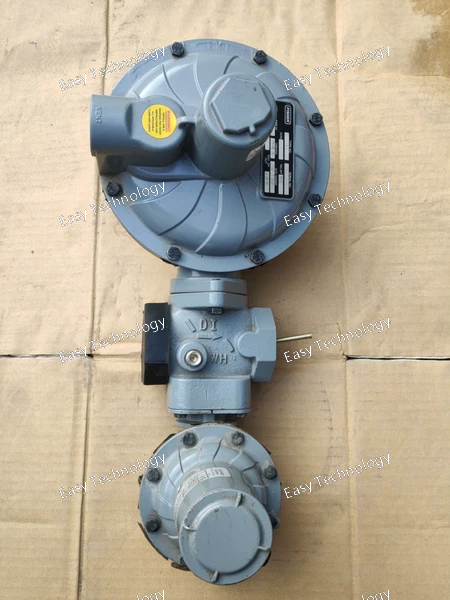

Key Specifications / Parameters Product Series: CSB400 Series Pressure Reducing Regulators Model: CSB424‑IN Operating Principle: Direct‑acting, spring‑loaded regulator Body Sizes & End Connections: Multiple options including NPT, Rp (gas thread), ANSI flanged (CL 125 FF / CL 150 FF), PN‑rated, depending on model build Maximum Operating Inlet Pressure: Up to ~16 bar (232 psig) for certain builds; emergency rating ~20 bar (290 psig) for some builds Outlet Pressure Range (typical): From ~17 mbar (≈6.8 in w.c.) up to ~3.0 bar (≈43.5 psig) for standard models Operating Temperature Range: Standard −20 °C to +66 °C (−4 °F to +150 °F); Some low‐temperature versions go down to −30 °C (−22 °F) Materials: Bodies available in ductile cast iron and WCC steel; other internals include various alloys and elastomers depending on service Pressure Registration Options: Internal, external or dual registration of downstream pressure; variants include integrated monitor or slam‑shut modules for overpressure protection Typical Applications: Gas pressure reducing stations, commercial/industrial gas service, where stable downstream pressure and safety is required

Typical Technical Parameters Parameter Specification / Note Product Line Fisher Control-Scan CS400 Model CS400IN-8E Input Type Single-channel, Analog Input Input Signal 4-20 mA DC (Two-wire transmitter loop) Number of Channels 1 System Communication Proprietary Control-Scan network protocol via the CS400 baseplate. Power Supply Powered by the CS400 baseplate (typically 24 VDC). Isolation Channel-to-system isolation (typical for such modules). Operating Temperature 0 to 60 °C (32 to 140 °F) - for standard industrial environments. Mounting Plugs into a dedicated CS400 baseplate/rack.

Typical Technical Parameters Parameter Specification / Note Model Type LOC477 Valve Size Common sizes include 2 inch, 3 inch, and 4 inch (Depending on specific order code) Pressure Rating Typically Class 125 or Class 150 End Connections Flanged (Standard) Body Material Cast Iron (Standard for water and oil services), Ductile Iron, Bronze, or Cast Steel available. Trim Material Bronze or Stainless Steel Float Material Copper or Stainless Steel Operating Pressure Varies with size and body material; typically up to 250-400 psi for cast iron. Leverage Ratio Available in different ratios (e.g., 1:1, 2:1) to provide the required force for valve operation against line pressure. Application Level control in storage tanks, water supply tanks, reservoirs, and similar vessels.

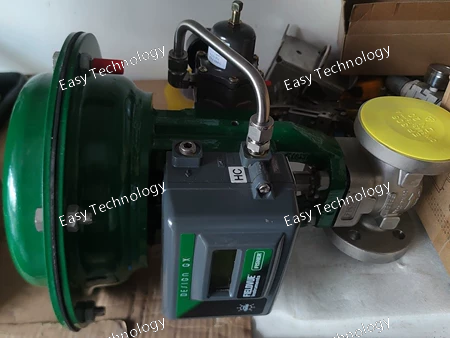

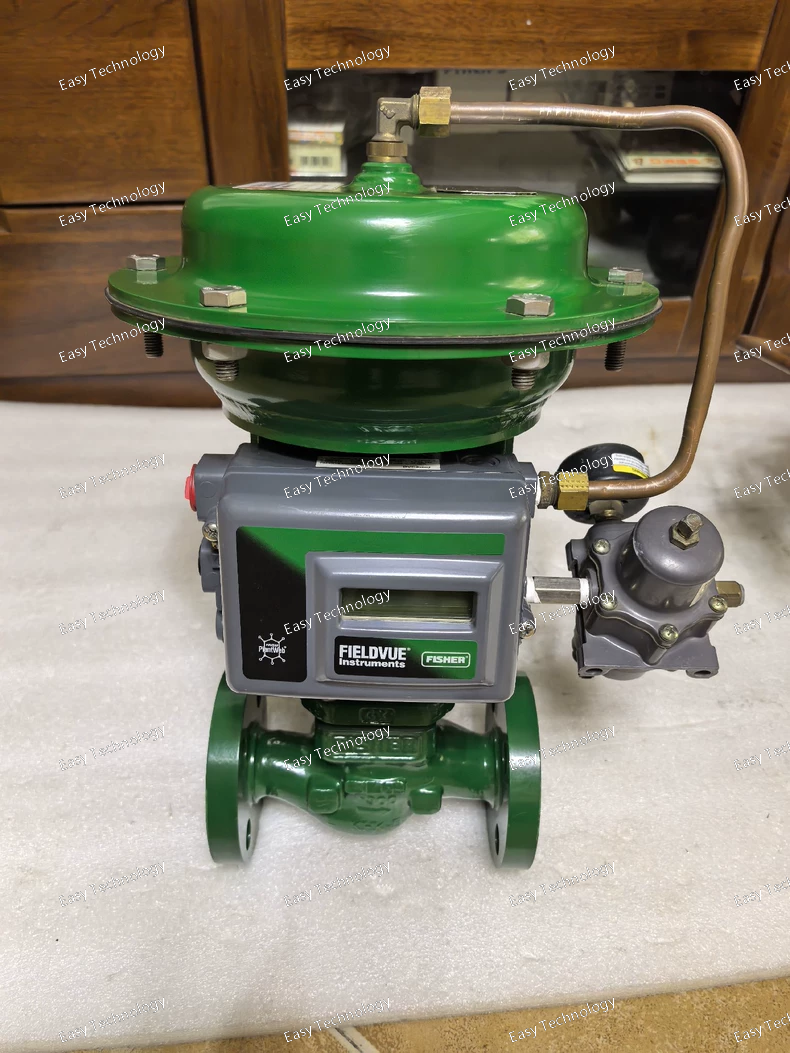

Typical Technical Parameters Parameter Specification / Note Product Line FIELDVUE DVC2000 Assembly Model FV-4112 Core Instrument DVC2000 Digital Valve Controller Actuator Fisher 1061 Series Diaphragm Actuator Input Signal 4-20 mA DC, with HART 5/7 protocol Supply Air Pressure Actuator Dependent. Common range for the 1061 actuator is up to 150 psig (10.3 bar). Air Consumption (Quiescent) Typically < 0.2 SCFM (0.34 Nm³/hr) Enclosure Rating NEMA 4X (IP66) Actuator Action Spring-to-Close / Air-to-Open (Typically for FV-4112). Can often be converted to the opposite action in the field. Valve Stem Travel Actuator Dependent. The specific travel (e.g., 3/4 inch, 1.5 inch) is defined by the exact 1061 actuator model in the assembly. Mounting The assembly is designed for direct mounting onto a compatible control valve body.

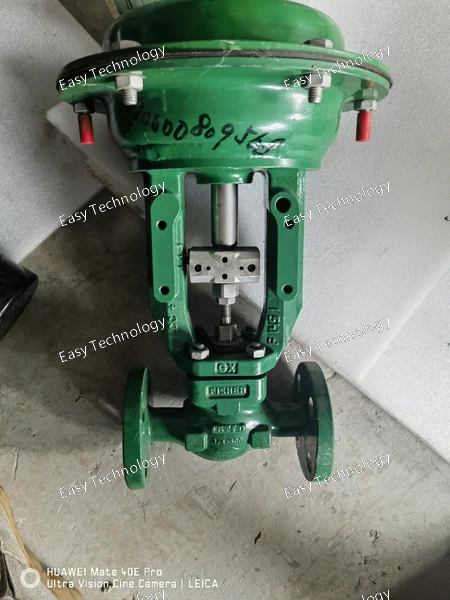

Key Specifications / Parameters Specification Detail Valve Series / Model Fisher GX Control Valve & Actuator System Valve Size NPS 1 (nominal 1‑inch) Pressure Class / Rating ASME Class 300 (flanged body, sliding‑stem) End Connections Raised‑face flanged per ASME B16.5 (for NPS 1, Class 300 builds) Flow Characteristics Equal‑percentage or linear trim options Shut‑off Capability Metal‑to‑metal seat standard (Class IV); optional upgrades (Class V) and soft‑seat (Class VI) Body / Bonnet Materials Standard carbon steel or stainless steel; alloy materials available Trim / Seat Options Metal‑hard faced, soft‑seat PTFE, low‑flow/micro‑flow trims Service Conditions General service, corrosive service, low‑flow, noise/cavitation mitigation Actuator & Accessories Multi‑spring pneumatic actuator integrated; digital valve controller optional Face‑to‑Face / Size Range Size range includes NPS ½ through NPS 6; dimensions align with standards

Key Specifications / Parameters Specification Detail Valve Series / Model Fisher GX Control Valve & Actuator System Actuator Size 750 (larger multi‑spring pneumatic actuator in the GX family) Valve Body Sizes DN 15 to DN 150 (NPS ½ to NPS 6) Pressure/Rating Up to ~51.7 bar (750 psig) for many GX versions (with proper actuator) End Connections Flanged; EN: PN 10/16/25/40; ASME: Class 150/300 Flow Characteristics Equal percentage or linear; special trims for noise & cavitation Shut‑off Capability Metal‐to‐metal seats standard (Class IV); optional Class V or soft‑seat Class VI Materials of Construction Carbon steel, stainless steel, duplex/alloy options; full trim options Service Conditions Supported General service, corrosive, low‑flow, cavitation/noise mitigation Actuator Air Supply Typical 4.0‑6.0 bar (58‑87 psig); optional lower ranges supported Maintenance / Features Replaceable trim, live‑loaded packing, large common parts across sizes

Key Specifications / Parameters Specification Value / Description Product Name & Series Fisher GX Control Valve, Actuator size 225 Valve Type Sliding‑stem globe style control valve with matched pneumatic diaphragm actuator Actuator Size 225 (refers to the multi‑spring actuator model) Flow Characteristics Equal‑percentage or linear trim options Pressure Class / Rating Body pressure ratings follow GX series: up to ASME Class 300 / EN PN 25/40 (depending on body material and size) Sizes / Port Diameters GX series covers a range: e.g., DN15 to DN150 / NPS ½ to NPS 6; the 225 actuator is typically used for smaller to mid‑sizes Materials of Construction Body/bonnet options: carbon steel, stainless steel, duplex/alloy; trim selections include metal‑to‑metal or soft seat configurations Actuator Supply / Ambient Pneumatic actuator air supply pressures typically 4.0 to 6.0 bar (58–87 psig) for full capabilities; ambient temperature down to –46 °C (‑50 °F) standard, optional down to –60 °C (‑76 °F) Service Conditions General service (liquid/gas/vapor), corrosive service, low‑flow, noise/cavitation mitigation; modular trim availability Installation / Connections Flanged, welded, or threaded ends (depending on size and standard)

Key Specifications / Parameters Specification Detail Valve Series Fisher GX Control Valve & Actuator System Valve Body Size DN 25 (nominal ~25 mm / ~1″) Pressure Ratings EN: PN 10 / 16 / 25 / 40 (flanged) ASME: Class 150 / Class 300 (flanged) End Connections Raised‑face flanged (EN 1092‑1 or ASME B16.5) Flow Characteristics Equal‑percentage or linear trims Shut‑off Classes Standard metal‑to‑metal: Class IV; optional upgrades: Class V or soft‑seat Class VI Body/Bonnet Materials Options include carbon steel, stainless steel, duplex and alloy materials Service Capabilities Liquids, gases, vapours; general service, corrosive service, low‑flow, noise/cavitation control Actuator/Accessories Multi‑spring pneumatic actuator integrated; digital or analog positioner support Face‑to‑Face Dimensions Compliant with EN 558‑1 for DN sizes and ANSI/ISA standards for ASME builds Special Features Flow‑up standard, port‑guided or stem‑guided plug options, compact structure for small‑bore service

Key Specifications / Parameters Specification Detail Valve Series Fisher GX Control Valve & Actuator System Valve Size DN 20 (nominal 20 mm) Pressure Rating ANSI Class 150 (flanged connection rating) End Connections Raised‑face flanged (standard for ANSI Class 150) Flow Characteristics Equal‑percentage or linear trim options Shut‑off Class Standard: metal‑to‑metal seats (Class IV); optional upgrades to Class V or Class VI depending on trim/materials Body / Bonnet Materials Standard carbon steel or stainless steel; higher‑alloy materials available for corrosive service Trim Options Metal‐hard face, soft‑seat PTFE, noise/cavitation/low‑flow trims Service Conditions Supported General process service, corrosive media, low‑flow/cavitation mitigation Actuator & Accessories Multi‑spring pneumatic actuator; digital or analog positioners available; integrated mounting

Key Specifications / Parameters Valve Series: Fisher GX Control Valve & Actuator System Valve Body Size: DN 50 (nominal 50 mm) Pressure Rating: PN 40 (per EN standard) for body/flange construction. The GX series supports classes up to PN 40 in EN ratings. End Connections: Flanged, raised face (EN 1092‑1) for the PN 40 version; butt‑weld or socket weld end variants may also exist in certain builds Flow Characteristics: Equal‑percentage or linear trim selections available; special trims (micro‑flow, low‑flow, noise/cavitation control) optional Shut‑off Class: Standard metal‑to‑metal seat = Class IV; optional upgrades to Class V (metal seat) or Class VI (soft seat) Materials of Construction: Body/bonnet options include carbon steel, stainless steel and alloy materials; trim/seat options include metal‑hard faces or soft seats depending on service Service Capabilities: General service (liquid, vapor, gas), corrosive service, low‑flow applications, noise/cavitation mitigation; standard live‑loaded packing; optional extension bonnets for high temperature or cryogenic service Actuator/Accessory: GX actuator is a compact multi‑spring pneumatic type integrated with valve body; automated sizing so once body construction selected, actuator size is fixed; digital valve controller option (FIELDVUE) available Face‑to‑Face / Dimensions: Compliant with EN/ISA/ANSI standards for face‑to‑face dimension; for DN 50 size the internal diameter and wall thickness correspond to ~Ø60.3 mm × 2.9/3.2 mm for butt‑weld ends in some variants Flow direction: Typically “flow‑up” for standard trim but flow‑down and special trim variants are supported
