Typical Technical Parameters Parameter Specification / Note Product Line FIELDVUE DVC6200 Assembly Model 2E670002202 Input Signal 4-20 mA HART or Foundation Fieldbus (Specific type defined by full order code) Supply Air Pressure 20 to 150 psi (1.4 to 10.3 bar) - Actuator Dependent Air Consumption Very low quiescent flow Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40° to 185°F (-40° to 85°C) Travel Range Actuator Dependent. Defined by the specific actuator in the assembly. Valve Shutoff Rating Valve Dependent. Defined by the specific valve body included in the assembly. Mounting Directly on linear or rotary actuators (Pre-assembled unit)

Typical Technical Parameters Parameter Specification / Note Product Line FIELDVUE DVC6200 Assembly Model 2E791902202 Input Signal 4-20 mA HART or Foundation Fieldbus (Specific type defined by full order code) Supply Air Pressure 20 to 150 psi (1.4 to 10.3 bar) - Actuator Dependent Air Consumption Very low quiescent flow Enclosure Rating NEMA 4X (IP66/67) Ambient Temperature -40° to 185°F (-40° to 85°C) Travel Range Actuator Dependent. Defined by the specific actuator in the assembly. Valve Shutoff Rating Valve Dependent. Defined by the specific valve body included in the assembly. Mounting Directly on linear or rotary actuators (Pre-assembled unit)

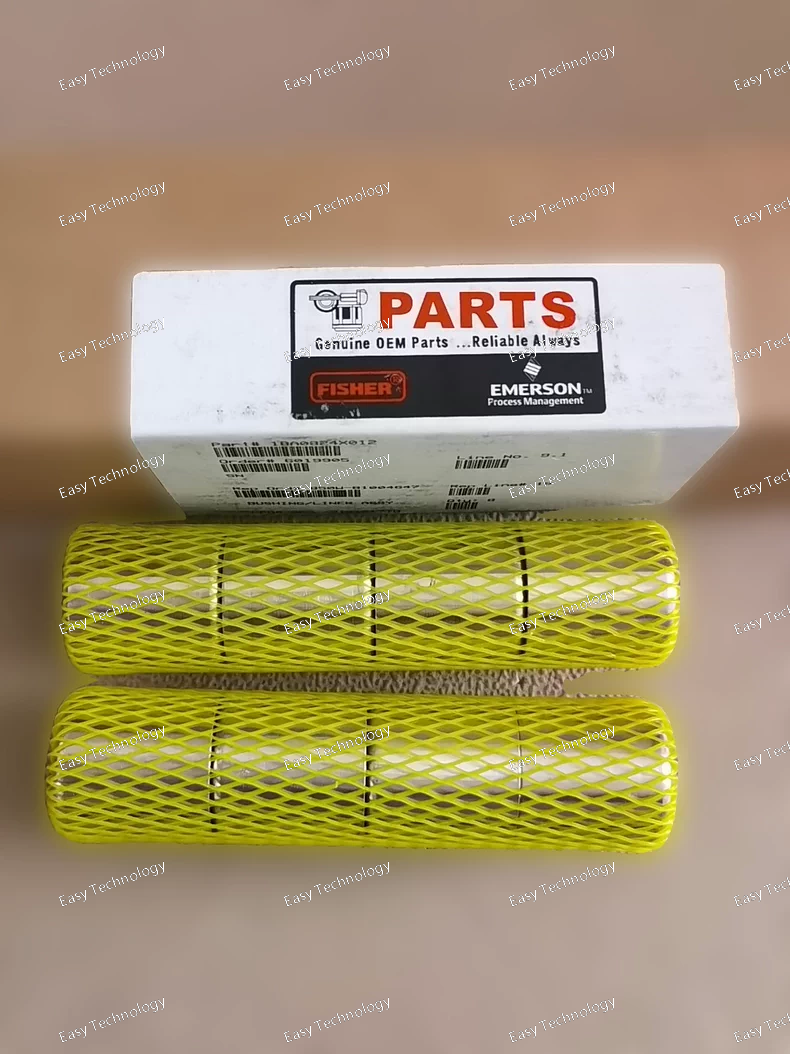

Key Specifications / Parameters Specification Detail Part Number 18A0824X012 Product Type Bushing / liner for bellows‑seal bonnet Stem Diameter Fitment 12.7 mm (½‑inch) Compatible Bonnet Type ENVIRO‑SEAL bellows‑seal bonnet style Material/Construction Stainless steel (S31600) with PTFE lining Intended Function Guide the stem and maintain sealing in the bonnet assembly under elevated or vacuum service conditions

Key Specifications / Parameters Parameter Detail Part Number RGASKETX312 Product Type Gasket Set (bonnet gasket, seat ring gasket, shims) Valve Size Fitment Approximately 1″ nominal (Type E valve body) Service Temperature Range ‑100 °F (‑73 °C) to +450 °F (~232 °C) Materials / Construction Stainless steel/graphite or equivalent sheet gasket material Typical Kit Contents Bonnet gasket OD ~2.91 in; Spiral gasket OD ~2.50 in; Seat‑ring gasket OD ~2.22 in Application Maintenance or repair of body/bonnet and seat‑ring joints in small‑bore control valves

Key Specifications / Parameters Specification Value / Description Part Number RGASKETX232 Product Type Full‑capacity gasket set (bonnet gasket + seat‑ring gasket + shim(s)) Valve Size Fitment Approximately 8″ (Type E / E‑Body series) Service Temperature Range –325 °F (‑198 °C) to +1100 °F (~593 °C) Materials / Construction Alloy/graphite (e.g., Inconel/graphite or similar metal‑wound + filler construction) Typical Contents Included Bonnet gasket (OD ~11.00 in), Seat‑ring gasket (OD ~9.19 in) Application Maintenance/repair of major joint seals in high‑temperature, high‑stress valve service

Key Specifications / Parameters Parameter Detail Part Number RGASKETX222 Product Type Full‑capacity gasket set (bonnet gasket, spiral gasket, seat ring gasket, shim) Valve Size Fitment Type E, 6″ nominal (approx NPS 6) Materials / Construction Inconel or similar alloy winding with graphite filler Temperature Range –325 °F (‑198 °C) to +1100 °F (~593 °C) Typical Kit Contents Bonnet gasket, spiral‑wound seat‑ring gasket, shim(s) Application Maintenance/repair of body/bonnet and seat ring joints in heavy‑service valves

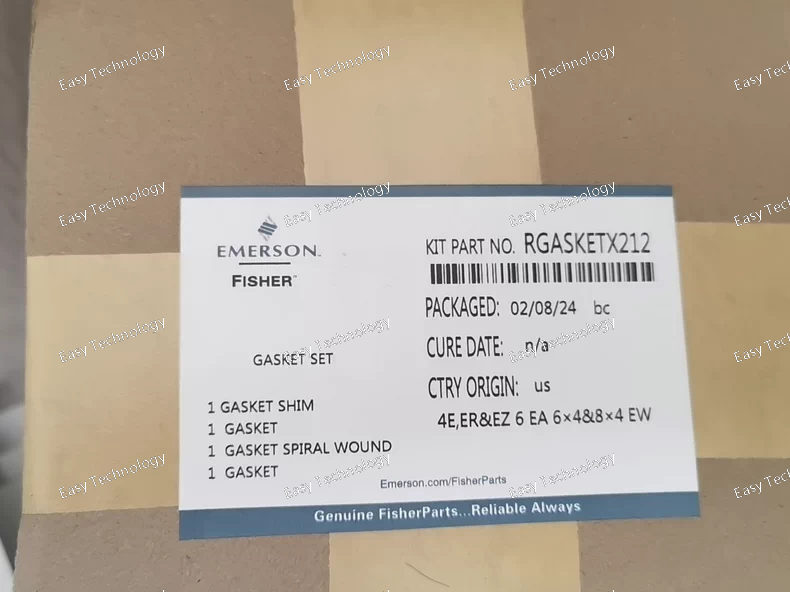

Key Specifications / Parameters Specification Detail Part Number RGASKETX212 Product Type Full‑capacity gasket set (body/bonnet + seat ring gaskets + shim) Compatible Valve Series Fisher Type E (E‑Body) control valves Typical Fitment Size 4″ nominal size Construction Materials Inconel (or similar alloy) winding with graphite filler (metal/graphite construction) Service Temperature Range From approximately –325 °F (‑198 °C) up to +1100 °F (≈593 °C) Typical Dimensions in Kit Bonnet gasket OD ≈ 6.09 in; Spiral gasket OD ≈ 5.56 in; Seat‑ring gasket OD ≈ 5.47 in Application Maintenance/repair of body/bonnet and seat ring sealing surfaces in heavy‑service valves

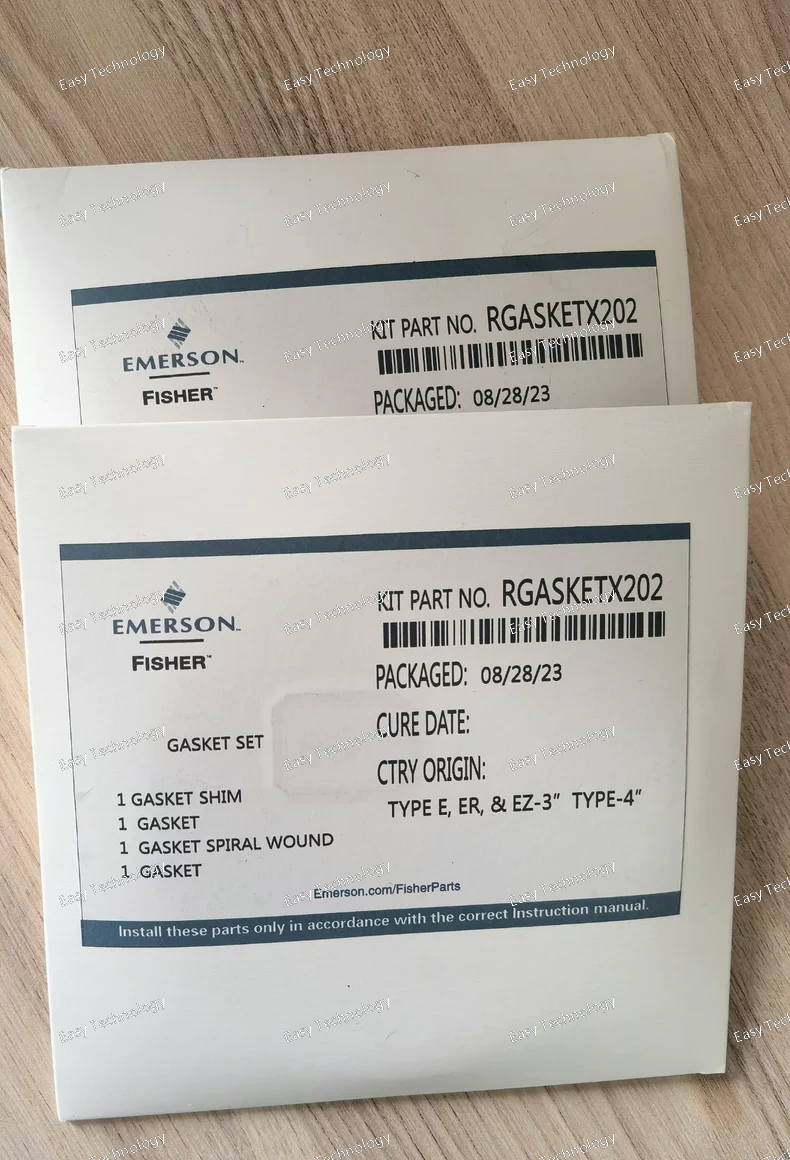

Key Specifications / Parameters Parameter Detail Part Number RGASKETX202 Product Type Gasket Set (includes bonnet gasket, spiral‑wound seat‑ring gasket, shims) Valve Size Fitment ~3″ nominal (“Type E” valve body) Materials / Construction Inconel or similar alloy winding with graphite filler Temperature Range Approximately –325 °F (‑198 °C) to +1100 °F (~593 °C) Typical Kit Contents Bonnet gasket, spiral‑wound seat‑ring gasket, shim(s) Application Maintenance or repair of body/bonnet and seat‑ring joints in full‑capacity valves

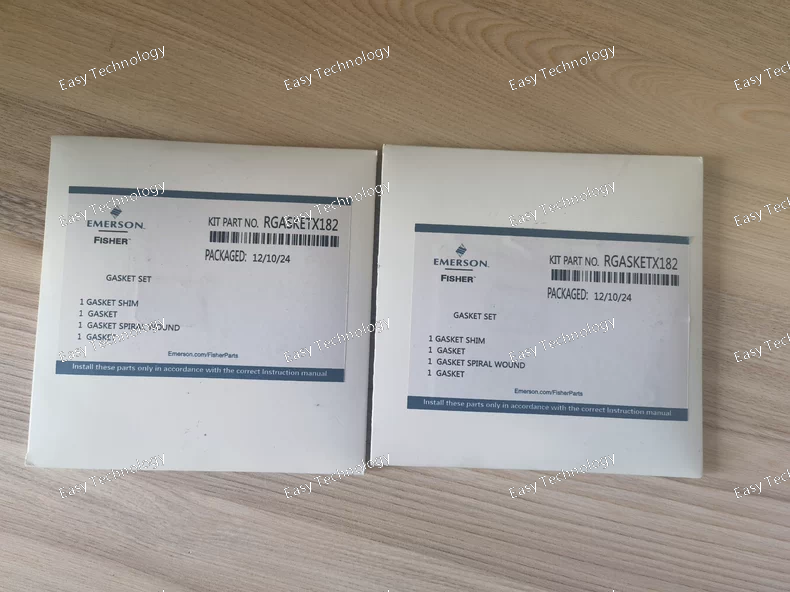

Key Specifications / Parameters Parameter Detail Part Number RGASKETX182 Product Type Gasket set / joint sealing kit Valve Size Fitment 2″ nominal E‑Body control valves Service Temperature Range –325 °F (‑198 °C) to +1100 °F (~593 °C) Materials / Construction Inconel (or similar alloy) with graphite filler Typical Kit Contents Bonnet gasket, spiral-wound seat-ring gasket, shim(s)

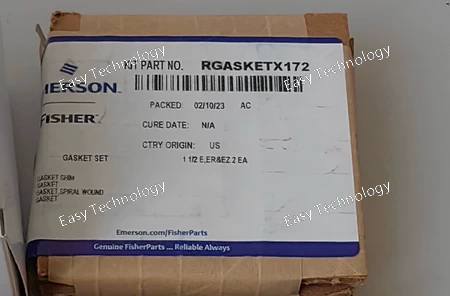

Key Specifications / Parameters Specification Value / Description Part Number RGASKETX172 Product Type Gasket set (includes bonnet gasket, spiral wound seat ring gasket, shim, etc.) Size / Fitment ~1‑½″ size (“1 1/2″”) control valves, Type E bodies Temperature Range Approximately –325 °F (‑198 °C) to +1100 °F (~593 °C) Construction / Materials Spiral‑wound metal/graphite (or metal filler) style gasket set for high‑temperature service Application Re‑sealing body/bonnet joints and seat rings in full‑capacity control valves
