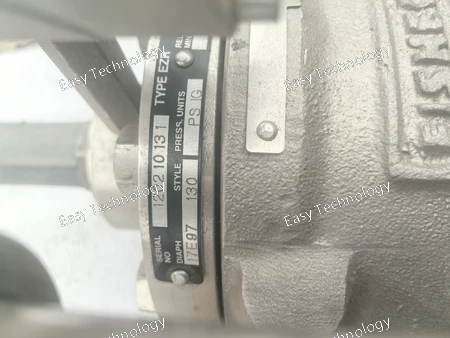

Technical Parameters Category Parameter Specification / Description General Model Series EZR Type Rotary Control Valve Shaft Motion Rotary Pressure & Temperature Pressure Rating (ANSI) ANSI Class 150, 300, 600 Max. Allowable Pressure Up to 1480 psig (102 bar) for Class 600. Temperature Range Standard: -50°F to 800°F (-46°C to 427°C). Depends on seat and seal materials. Flow & Sizing Valve Sizes Depends on the attached rotary valve (e.g., 3" to 48" / DN80 to DN1200). Flow Capacity (Cv) Extremely High. Determined by the specific ball, butterfly, or plug valve it is coupled with. Can range from hundreds to tens of thousands. End Connections Flanged (RF, RTJ), Wafer, Lugged (for butterfly valves). Actuator & Performance Mounting Designed to be paired with Fisher SC Series scotch-yoke piston actuators or other rotary actuators. Torque Output Provided by the actuator. The EZR system is designed to transmit high torque efficiently. Characterization Achieved through the characterized cam in the actuator positioner, providing linear or equal percentage flow characteristics.

The Schneider Electric TM221C16T is a Modicon TM221 Logic Controller (PLC) from the Modicon M221 Nano series. It is a compact, cost-effective programmable logic controller designed for small to medium-sized automation tasks, featuring 16 embedded digital inputs and 10 embedded transistor outputs (sourcing type).

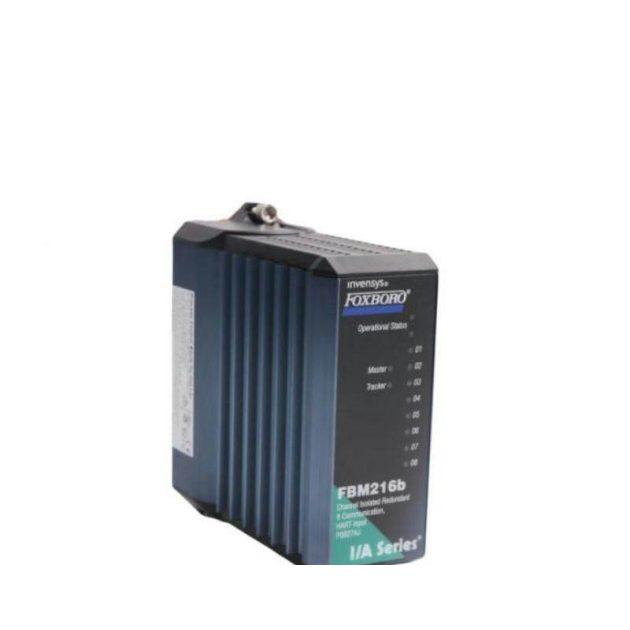

The FOXBORO FBM216B P0927AJ is a redundant-ready HART input module designed for high-reliability industrial control systems. It seamlessly integrates into complex automation networks, ensuring continuous operation and enhanced safety in critical applications.
