In the era of Industry 4.0, the ability of industrial components to communicate seamlessly across diverse protocols is the foundation of a smart factory. To empower engineers and system integrators, Easy Semiconductor Technology (Hong Kong) Limited, a premier global distributor of automation hardware, has released a technical guide on the configuration and optimization of ABB communication modules.
ABB’s automation ecosystem, centered around the AC500 and AC800M PLC families, offers some of the most versatile communication options in the industry. Whether integrating legacy Serial devices or modern Industrial Ethernet protocols, proper configuration is essential for system stability and data integrity.
ABB utilizes a modular approach to connectivity. Controllers like the PM564 or PM591 can be expanded using dedicated communication modules (CM) that plug directly into the terminal base.
PROFINET: The standard for high-speed, real-time data exchange in discrete manufacturing.
PROFIBUS DP: A reliable choice for field-level device integration in process industries.
EtherCAT: Preferred for high-performance motion control and synchronized drive systems.
Modbus TCP/RTU: The universal "bridge" for connecting third-party sensors and energy meters.

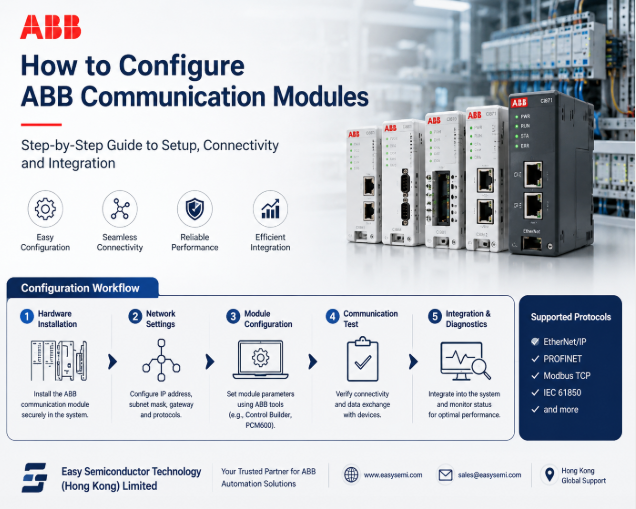

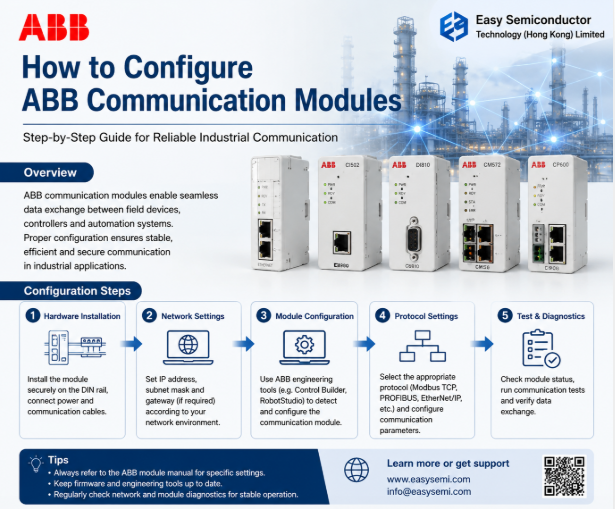

The ABB Automation Builder software is the integrated engineering suite used to configure all AC500 components. Follow these technical steps to establish a robust communication link:
In the Automation Builder project tree, right-click on the "Communication Modules" slot of your CPU. Select the specific hardware model, such as the CM579-PNIO (PROFINET) or CM572-DP (PROFIBUS).
Once the module is added, navigate to the "Configuration" tab:
IP Addressing: For Ethernet-based modules (PROFINET/Modbus TCP), assign a static IP address, subnet mask, and gateway that align with your plant’s OT network.
Baud Rate/Station ID: For PROFIBUS or Serial modules, ensure the Station ID is unique and the baud rate matches all slave devices on the segment to avoid "bus quiet" errors.
For PROFINET or PROFIBUS networks, you must import the GSDML or GSD files of the slave devices. These files act as the "dictionary," telling the ABB master how to interpret the data bits coming from drives, remote I/O, or valves.
In the IEC 61131-3 programming environment (Control Builder Plus), use ABB’s standard communication libraries. For Modbus TCP, utilize the ETH_MOD_MAST function block to trigger read/write commands based on your process logic.
As we move into 2026, ABB has prioritized IT/OT convergence. Newer ABB communication modules now support native OPC UA server functionality.
"Configuring OPC UA directly on the communication module allows the PLC to speak directly to SCADA systems and cloud platforms without the need for an intermediate gateway," says a senior systems architect at Easy Semiconductor. "This reduces latency and simplifies the overall network architecture."
Key benefits of OPC UA configuration include:
Standardized Data Modeling: Simplifies how upper-level software "sees" PLC variables.
Security: Built-in encryption and certificate-based authentication to protect industrial data.
Successful configuration often requires fine-tuning to ensure long-term reliability:
Network Loading: Use a managed switch to monitor the load on PROFINET networks. Excessive "jitter" can lead to watchdog timeouts and unplanned CPU stops.
Diagnostic Tools: ABB Automation Builder provides an online diagnostic mode. Use the "Traffic Light" status indicators on the module to identify hardware faults or configuration mismatches in real-time.
Termination Resistors: For RS-485 and PROFIBUS networks, always ensure that termination resistors are switched 'ON' at the first and last physical nodes of the segment to prevent signal reflection.
ABB’s communication modules play a vital role in the global push for "Green Automation." By integrating energy-monitoring modules via Modbus TCP, plants can achieve:
Real-time Peak Demand Management: The PLC can communicate with non-essential loads to shed power during peak utility pricing.
Reduced Wiring Waste: The transition from traditional point-to-point wiring to fieldbus architectures (like PROFIBUS) significantly reduces the copper consumption in large-scale facilities.
The complexity of modern ABB systems requires a partner who understands both the hardware and the logistics. Easy Semiconductor Technology (Hong Kong) Limited bridges this gap.
Extensive Inventory: We stock a wide array of ABB AC500 and AC800M communication modules, including hard-to-find legacy parts and the latest PROFINET/EtherCAT interfaces.
Global Delivery Hub: Based in Hong Kong, we offer expedited international shipping to ensure that your project’s commissioning schedule remains on track.
Technical Advisory: Our team provides hardware selection advice, helping you choose the right communication module to ensure compatibility between new ABB controllers and existing plant infrastructure.
Mastering the configuration of ABB communication modules is more than a technical task; it is the key to unlocking the full potential of a connected enterprise. By following industry best practices and partnering with a reliable distributor like Easy Semiconductor, manufacturers can build resilient, high-speed networks that serve as the backbone of tomorrow’s industrial innovation.
