Weidmüller PJ ADV TNAW (1338710000) | Industrial Power Connector

Key Features:

16A/400V male plug (pin contacts)

Screw Termination 0.5-4mm²

IP65/IP67 when mated

Robust Design:
✔ PA66 housing (-40°C to +85°C)
✔ Gold-plated contacts
✔ T-lock secure mating

Certified: UL 1977, IEC 61076-2-101

Applications:
✔ Control cabinet wiring
✔ Motor power connections
✔ Harsh industrial environments

→ Reliable high-current connectivity

(Female socket version available as PJ ADV TNAF)

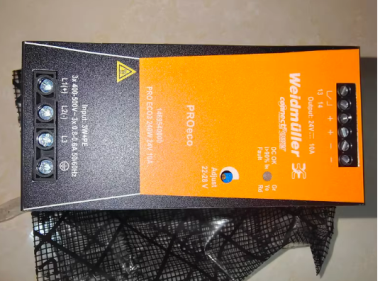

Weidmüller PRO ECO3 240W 24V 10A (1469540000)

Key Features:

240W Output (24V DC, 10A)

Universal Input 85-264V AC / 120-370V DC

High Efficiency ≥94% (Active PFC)

3W+PE Wiring for secure grounding

Industrial Ready:
✔ Metal housing, IP20
✔ Fanless design
✔ -25°C to +70°C operation

Certifications:

UL 508, EN 62368-1

CE, RoHS

Applications:
✔ Control cabinets
✔ Industrial automation
✔ Sensor networks

→ Reliable power with advanced protection

*(DIN-rail mountable, output adjustable 22-28V)*

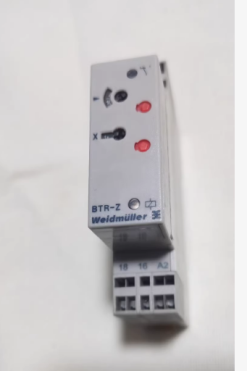

Weidmüller BTR-Z Timer Relay (8647730000)

Key Features:

Adjustable Timing: 0.1s–120h

4 Modes: ON/OFF delay, interval, flashing

Output: SPDT relay (8A 250V AC / 5A 30V DC)

Industrial Design:
✔ DIN-rail mount (IP20)
✔ LED status display
✔ -20°C to +60°C operation

Certified: CE, UL, RoHS

Applications:
✔ Motor start/stop control
✔ Conveyor system timing
✔ Automated lighting sequences

→ Reliable industrial timing solution

*(12-240V AC/DC input versions available)*

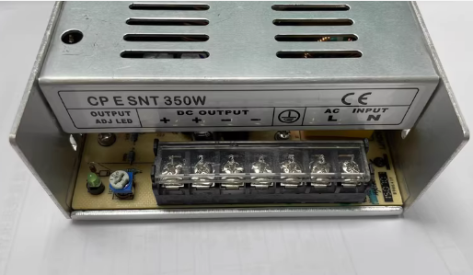

Weidmüller CP E SNT 350W 24V 14.6A (1202550000)

Key Features:

350W Output (24V DC, 14.6A)

Wide Input Range 100-240V AC / 125-370V DC

High Efficiency ≥93%

Smart Cooling Temperature-controlled fan

Protections:
✔ Overload/Short-circuit
✔ Overvoltage/Overtemperature

Industrial Design:

Metal housing, IP20

DIN-rail mountable

-25°C to +70°C operation

Certifications:

UL 508, EN 62368-1

CE, RoHS

Applications:
✔ Control panels
✔ Industrial drives
✔ Automation systems

→ Reliable power for demanding applications

(Parallel operation supported for redundancy)

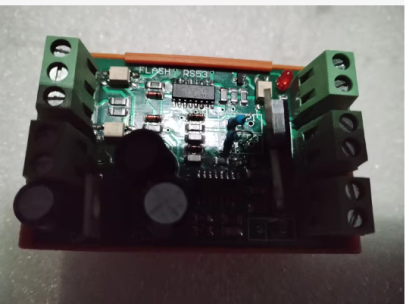

Weidmüller RS53 Trigger Board | Signal Beacon Controller

Key Features:

Controls RS53 Beacons (Steady/Flash/Rotate modes)

24V DC Input (18-30V)

Multi-Color Support (Red/Yellow/Green/Blue/White)

Industrial Ready:
✔ DIN-rail mountable (IP20)
✔ -25°C to +60°C operation
✔ Overload protection

Certified: CE, UL, RoHS

Applications:
✔ Machine status indication
✔ Warning light systems
✔ Production line signaling

→ Centralized control for industrial visual alarms

(Compatible with all RS53 series beacons)

Weidmüller SAIS-3-IDC M8 Small (1784040001) | M8 Sensor Connector

Key Features:

3-pin M8 Male (A-coded)

IDC Termination (tool-free)

IP67/IP69K Rated

Industrial Ready:
✔ -40°C to +85°C operation
✔ Gold-plated contacts
✔ 360° EMI shielding

Certified: UL, IEC 61076-2-104

Applications:
✔ Proximity sensors
✔ Tight-space cabling
✔ Washdown environments

→ Compact, reliable sensor connectivity

(Screw-termination version available)

Weidmüller BTR-S Timer Relay (8647720000)

Key Features:

Adjustable Timing: 0.1s–120h

4 Modes: ON/OFF delay, interval, flashing

Output: SPDT relay (8A, 250V AC)

Industrial Design:
✔ DIN-rail mount (IP20)
✔ LED status display
✔ -20°C to +60°C operation

Certified: CE, UL, RoHS

Applications:
✔ Motor start sequencing
✔ Conveyor belt control
✔ Automated lighting

→ Reliable timing control for industrial systems

*(12-240V AC/DC input versions available)*

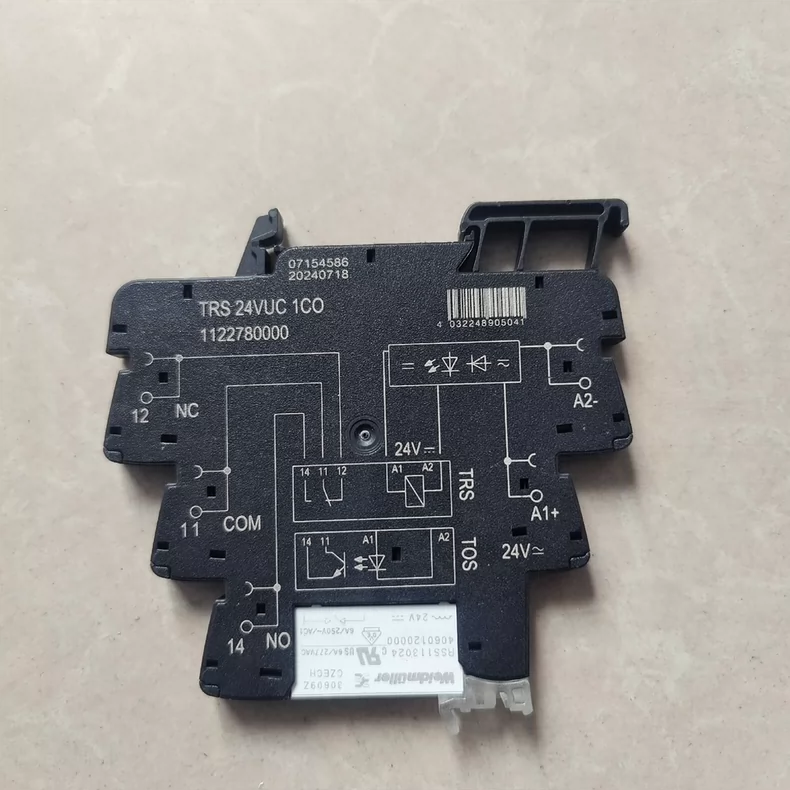

Weidmüller TRS 24VUC 1CO (1122780000) | SIL3 Safety Relay

Key Features:

1NO/1NC Safety Contact (3A 250V AC / 5A 24V DC)

24V DC Supply (19.2-28.8V)

Dual-Channel Input with cross-monitoring

SIL3/PL e Certified

Safety Protections:
✔ Forced-guided contacts
✔ Short-circuit proof
✔ <20ms response time

Industrial Design:

DIN-rail mount (IP20)

-25°C to +60°C operation

Certified: TÜV, CE, UL

Applications:
✔ Emergency stop systems
✔ Safety gate monitoring
✔ Machine guarding

→ Compact safety solution for critical controls

*(2-channel output version available)*

PRO DM 20 (2486080000) | Industrial Digital Multimeter

Key Features:

True RMS for AC/DC voltage/current

Wide Range: 1000V DC/750V AC, 20A, 40MΩ

6000-Count LCD with backlight

CAT III 600V safety rated

Industrial Tough:
✔ IP54 dust/splash proof
✔ 1m drop protection
✔ -10°C to +50°C operation

Certified: CE, UL, RoHS

Applications:
✔ Electrical troubleshooting
✔ Equipment maintenance
✔ HVAC system checks

→ Reliable measurements for harsh environments

(Bluetooth model available for data logging)

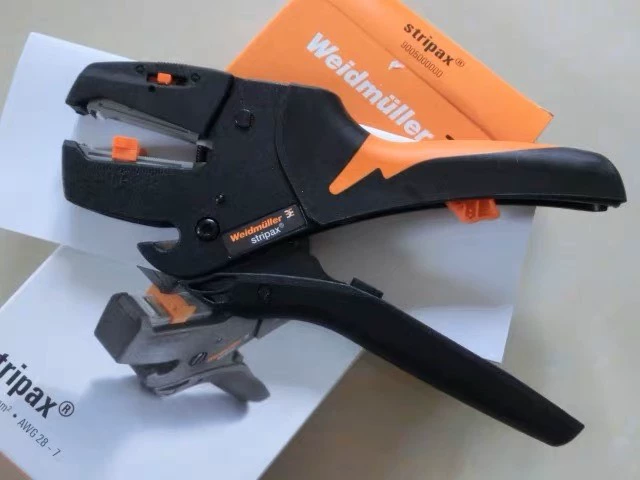

STRIPAX (9005000000) | Automatic Wire Stripper

Key Features:

Wire Range: 0.08-6mm² (AWG 28-10)

Self-Adjusting Jaws for precise stripping

Integrated Cutter for cable trimming

Professional Design:
✔ Tungsten carbide blades
✔ One-hand spring operation
✔ Ergonomic anti-slip grip

Certified: CE, RoHS

Applications:
✔ Control panel wiring
✔ Electrical installations
✔ Field maintenance

→ Fast, clean stripping for industrial cables

(VDE-insulated version available)
