Technical Specifications:

Power Output: 75kW (100HP) continuous duty

Rated Current: 145A (150% overload for 3 seconds)

Input Voltage: 380-480V AC (±10%), 3-phase, 47-63Hz

Control Technology: Advanced Direct Torque Control (DTC)

Speed Accuracy: ±0.1% of set speed (encoderless)

Efficiency: 98.5% typical at full load

Protection Rating: IP21 standard (IP55 optional)

Cooling System: Smart forced-air with thermal management

Advanced Features:

Precision Control System:

ABB's fourth-generation DTC algorithm

Automatic motor tuning (AMA)

6 programmable torque curves

Dynamic braking capability

Energy Management:

Smart Energy Optimization (SEO) function

Active harmonic filtering (THD<3%)

Regenerative energy handling

Industrial Connectivity:

Dual isolated RS485 (Modbus RTU)

Optional fieldbus modules (PROFINET, EtherCAT, DeviceNet)

Embedded web server for remote monitoring

24 digital/analog I/O points

Protection Mechanisms:

Triple-redundant IGBT protection

Real-time motor thermal modeling

Advanced earth fault detection

Input phase monitoring

Physical Characteristics:

Enclosure Dimensions: 355×720×340mm (W×H×D)

Shipping Weight: 42kg (including packaging)

Operating Conditions:

Temperature: -15°C to +50°C (60°C with derating)

Humidity: 5-95% non-condensing

Altitude: 1000m (3000m with derating)

Industry Certifications:

Global Safety: CE, UL, cUL, EAC

Marine: DNV-GL, ABS

Industrial: IEC 61800-5-1, EN 61000-6-4

Energy: IE2 efficiency compliant

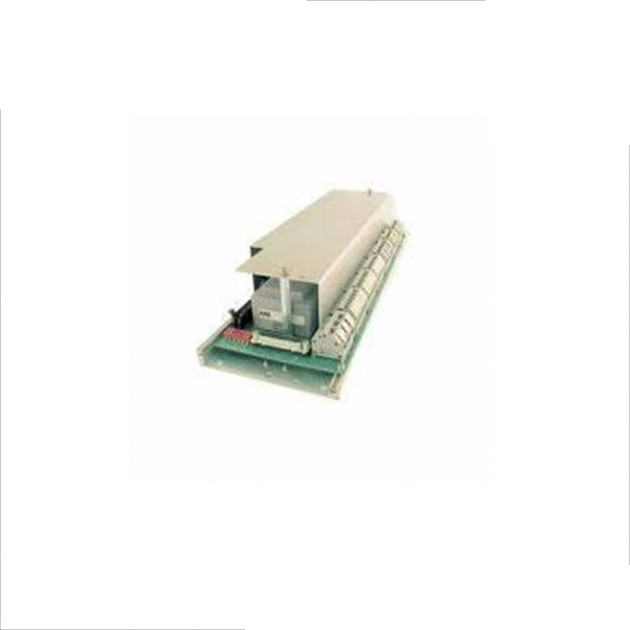

The ABB HIEE205014R0001 Analog Measuring Card is a high-performance solution designed for precise data acquisition in industrial automation systems, ensuring reliability and efficiency in a wide range of applications.

This robust ABB control board, model YB560103-BN/2, is designed for high-performance industrial automation systems, ensuring reliable operation and efficient control in manufacturing environments.
