Schneider LA2DT0 Contactor Basic Specifications • Type: TeSys D series contactor • Rated Current: 32A (AC-3) • Contacts: 2NO (2 normally open) • Coil Voltage: 24V DC (standard version) • Power Consumption: ≤8W Performance • Electrical Life: 500,000 ops (AC-3) • Mechanical Life: 10 million ops • Terminals: Screw clamp

ATV28HU18N4 Category: Variable Frequency Drive (VFD)
Series: Altivar 28 (Schneider Electric) Key Specifications: • Power Rating: 18.5kW (25HP) • Voltage: 200-240V AC, 3-phase (HU model) • Output Current: 46A • Enclosure: IP20 (N4) Main Features: • Compact & modular: Space-saving design • Simple control: Pre-programmed macros for quick setup • Basic connectivity: Built-in Modbus RTU • Protection: Motor overload, short-circuit protection Typical Applications: • Small pumps & fans • Conveyor systems • Basic industrial automation Standards Compliance:
IEC 61800, UL 508

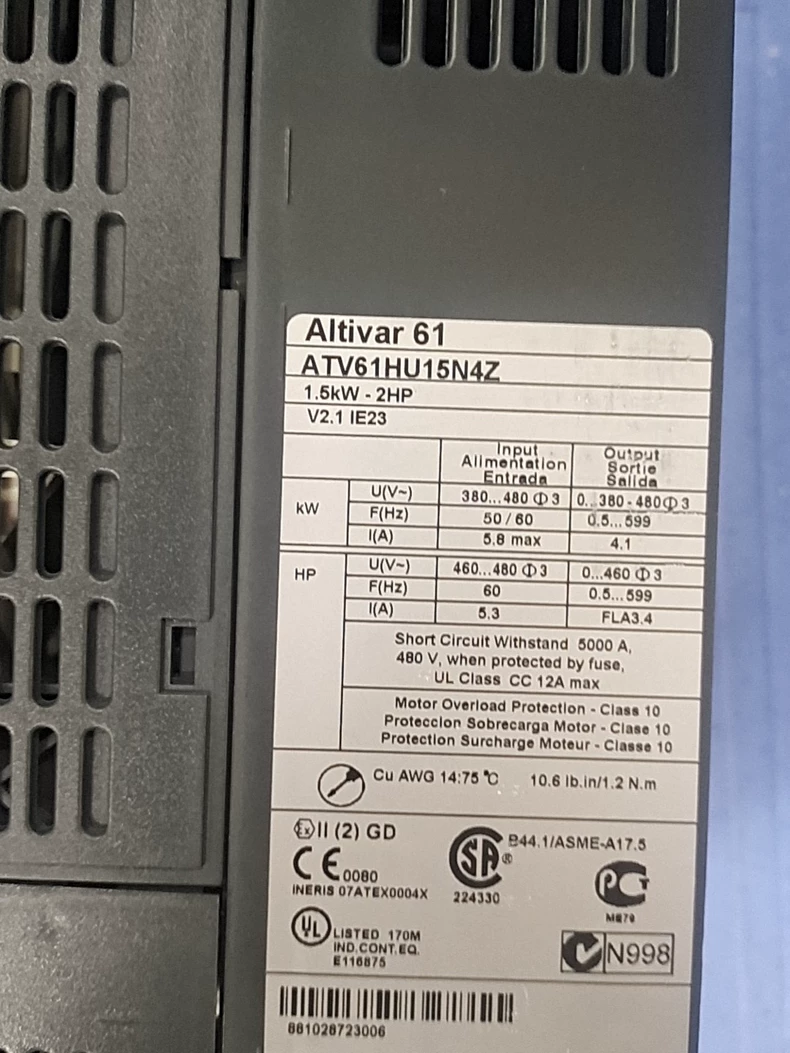

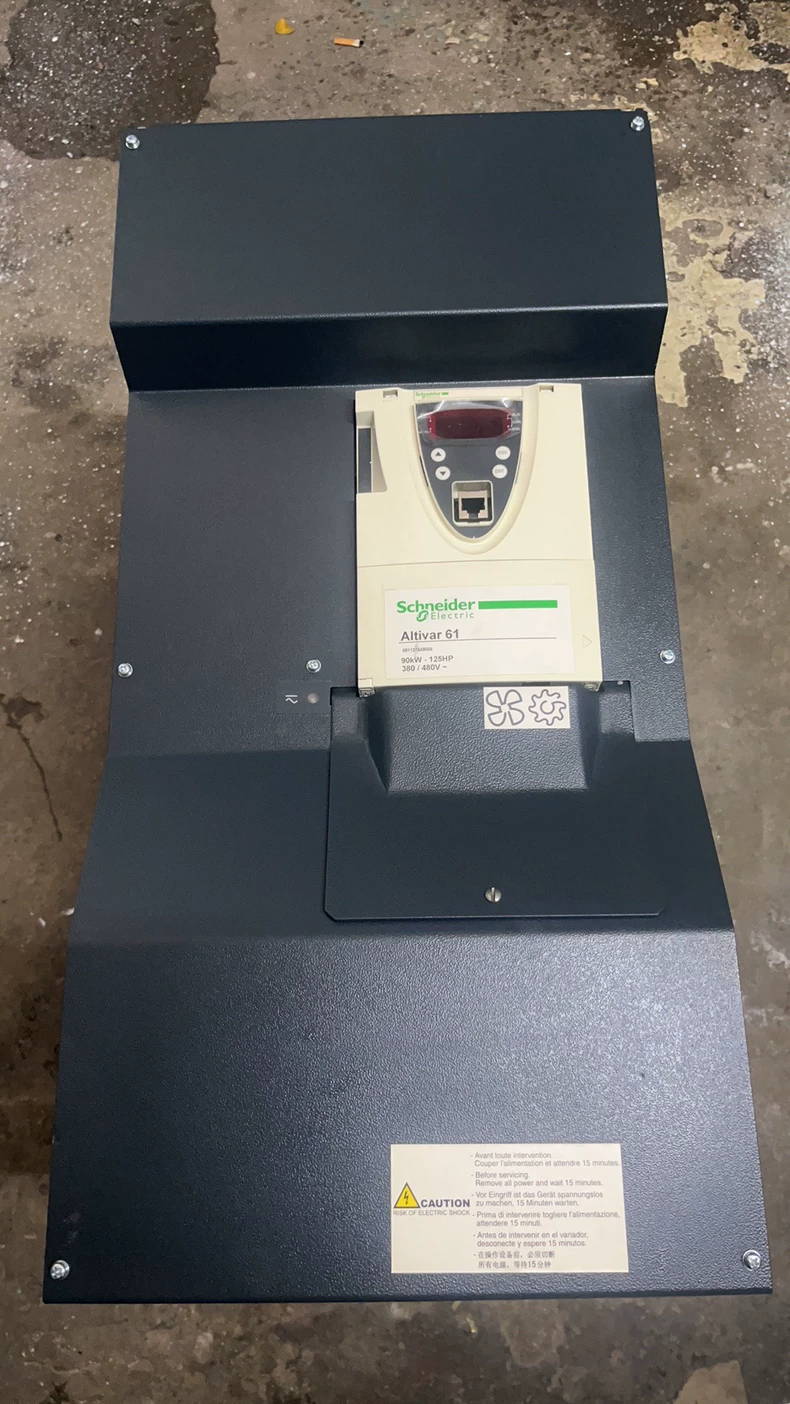

Schneider Altivar 61 Variable Frequency Drive (VFD) Series

& Specifications
Power Range: 0.75–630kW (1–850HP)

Input Voltage:

Standard Models (N4): 380–480V AC (±10%), 3-phase

High Voltage (N6): 525–690V AC (±10%), 3-phase

Output Frequency: 0.1–500Hz

Control Modes:

V/F (Volts per Hertz)

Sensorless Vector Control

Flux Vector Control (with optional encoder)

Performance & Protection
Overload Capacity:

150% for 60 seconds (standard)

200% for 3 seconds (heavy-duty models)

Enclosure Rating:

IP20 (standard)

IP21 (HD/HU heavy-duty models)

Built-in Safety: STO (Safe Torque Off)

Connectivity & Communication
Standard Protocols: Modbus, CANopen

Optional Cards: Profibus DP, Ethernet/IP

I/O Configuration:

2 Analog Inputs (0–10V/4–20mA)

4 Digital Inputs + 2 Digital Outputs

1 Relay Output

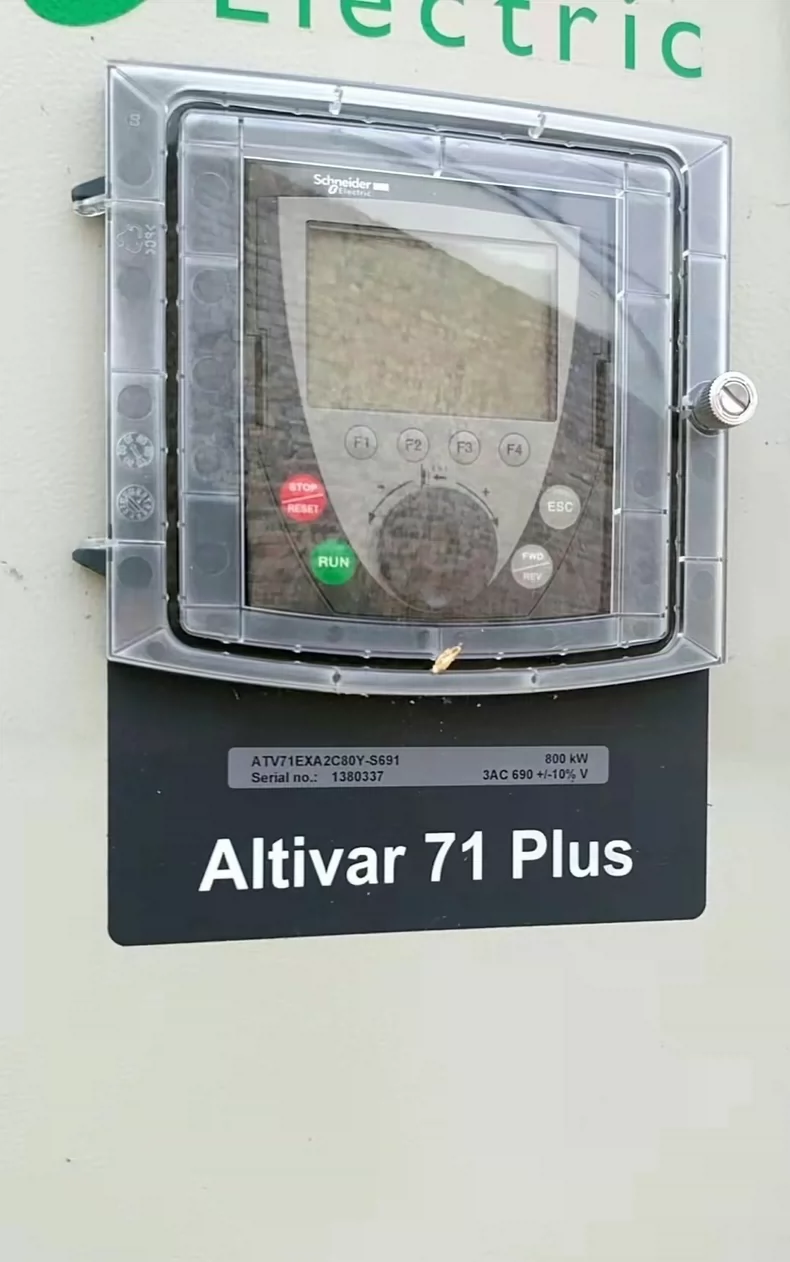

ATV71EXA2C80Y-S691 Category: Explosion-Proof Variable Frequency Drive (VFD)
Series: Altivar 71 (Schneider Electric) Key Specifications: • Power Rating: 80kW (110HP) • Voltage: 380-500V AC, 3-phase • Output Current: 150A • Protection: ATEX/IECEx Certified (Zone 1/21) Main Features: • Explosion-proof design: Certified for hazardous areas (gas/dust) • Robust construction: Stainless steel enclosure • Advanced control: Flux vector & PID modes • Cooling: Integrated forced ventilation Typical Applications: • Oil & gas processing • Chemical plants • Mining conveyors Standards Compliance:
ATEX 2014/34/EU, IECEx, IEC 60079

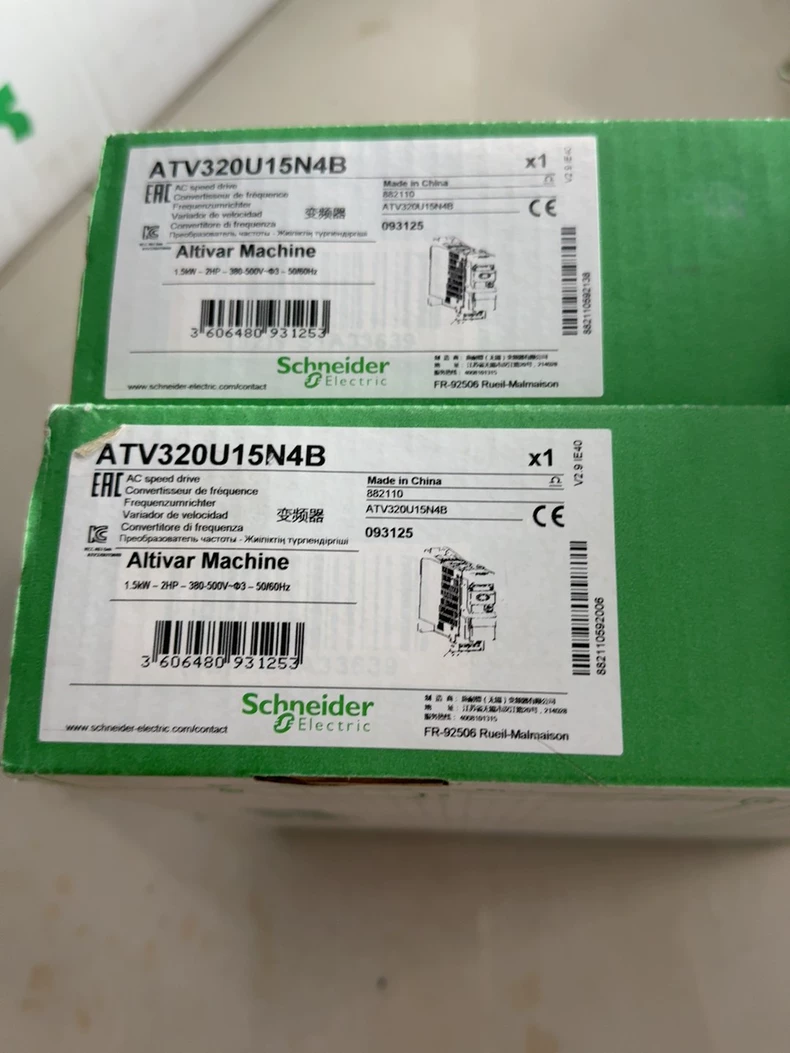

ATV320U15N4B Category: Variable Frequency Drive (VFD)
Series: Altivar 320 (Schneider Electric) Key Specifications: • Power Rating: 1.5kW (2HP) • Voltage: 200-240V AC, 1/3-phase (U model) • Output Current: 3.6A (3-phase) / 7A (1-phase) • Enclosure: IP20 (N4) with brake control (B option) Main Features: • Compact design: Ultra-slim for space-constrained panels • Plug-and-play: Pre-configured macros for quick setup • Connectivity: Built-in Modbus RTU • Protection: Motor thermal overload, short-circuit Typical Applications: • Small conveyors • Packing machines • Basic HVAC fans Standards Compliance:
IEC 61800, UL 508

ATV630D75N4 Category: Variable Frequency Drive (VFD)
Series: Altivar Process 630 (Schneider Electric) Key Specifications: • Power Rating: 75kW (100HP) • Voltage: 380-480V AC, 3-phase • Output Current: 142A • Enclosure: IP20 (N4) Main Features: • Process-optimized control: Pre-programmed pump/fan macros • Built-in connectivity: Ethernet, Modbus TCP, PROFIBUS • Protection: Coated PCB (optional conformal coating) • Safety: STO (Safe Torque Off) compliant Typical Applications: • Water treatment plants • HVAC systems • Industrial process control Standards Compliance:
IEC 61800-3, UL 508C

Schneider ATV320U75N4WS

7.5kW/75A

4DI/4DO | V/F

Auto-tuning

Voltage: 380V (Std) / 480V (Heavy) ±10%

Power: 220kW (Std) / 160kW (Heavy)

Current: 324A (Std) / 246A (Heavy)

Frequency: 50-60Hz (±5%) → 0.1-500Hz out

Switching: 2.5-8kHz adjustable

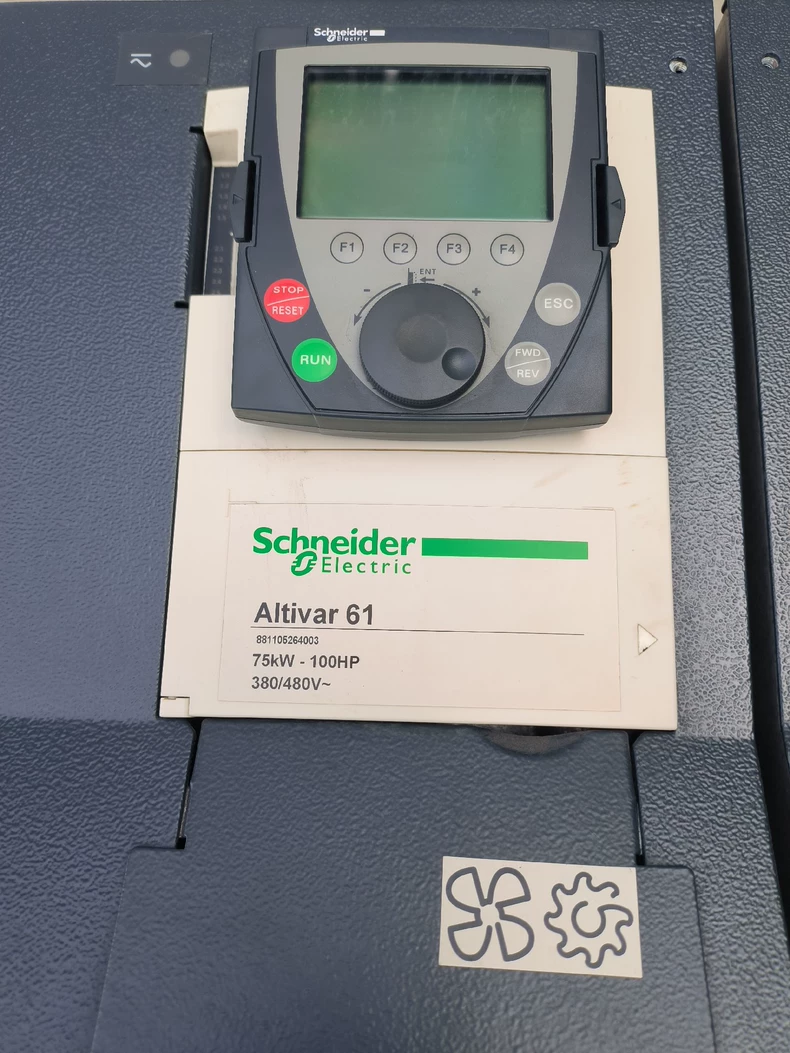

Schneider ATV61HD75N4Z

75kW | 380-480V 3~

EMC design | OH protection

No choke

Schneider VFD Key Specs:

0.37-15kW | 380-500V 3~

Modbus/CANopen (Bus options)

IP41 | Coated PCBs

50Hz | Slip comp
