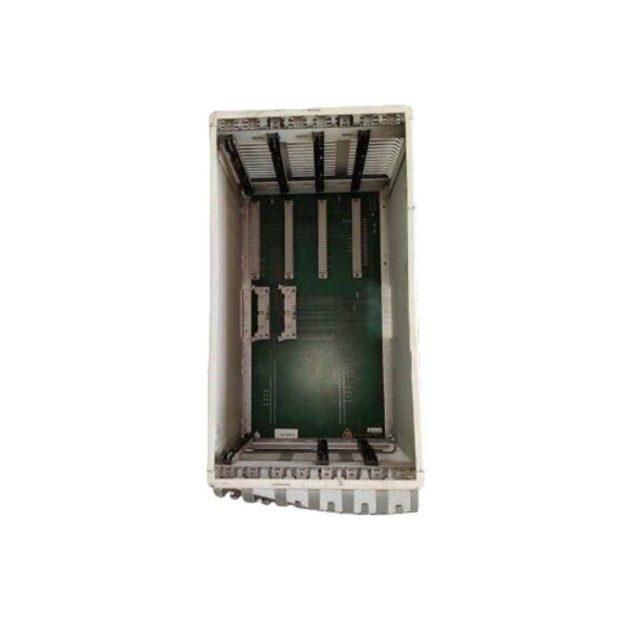

The ABB 3BDH000505R1 Power Supply Module is engineered for high-efficiency power distribution in industrial automation systems, ensuring stable and reliable operation across various applications.

Schneider Altivar 61 Variable Frequency Drive (VFD) Series

& Specifications
Power Range: 0.75–630kW (1–850HP)

Input Voltage:

Standard Models (N4): 380–480V AC (±10%), 3-phase

High Voltage (N6): 525–690V AC (±10%), 3-phase

Output Frequency: 0.1–500Hz

Control Modes:

V/F (Volts per Hertz)

Sensorless Vector Control

Flux Vector Control (with optional encoder)

Performance & Protection
Overload Capacity:

150% for 60 seconds (standard)

200% for 3 seconds (heavy-duty models)

Enclosure Rating:

IP20 (standard)

IP21 (HD/HU heavy-duty models)

Built-in Safety: STO (Safe Torque Off)

Connectivity & Communication
Standard Protocols: Modbus, CANopen

Optional Cards: Profibus DP, Ethernet/IP

I/O Configuration:

2 Analog Inputs (0–10V/4–20mA)

4 Digital Inputs + 2 Digital Outputs

1 Relay Output

This SIEMENS 6ES7151-1AA04-0 AB0DP interface module is specially designed for ET200S system, supports up to 12 Mbit/s transmission rate, can connect up to 63 modules, and is suitable for industrial automation control field. Such as power, electronics, textile, printing, medical, food processing, packaging, plastics, wire and cable, concrete and automotive industries.
