FANUC A16B-2203-0910/06A

Main CPU Board

For 16/18/21 Series CNC

Controls axes & system functions

FANUC A06B-6114-H207

Servo Amplifier (βi series)

20A, 200-230V AC

For βiS/βi motors

FANUC A20B-2101-0050

Type: PCB/Module (I/O or Servo Control)

Compatibility: FANUC 0/16/18/21 Series

Voltage: 24V DC (typical)

FANUC A06B-6079-H207 is a 2-axis alpha servo module of Fanuc. It is model SVM 2 - 40/80, with a rated input of 283 - 325 VDC and power of 8.5 kW. The rated output current is 12.5 A for the L - axis and 18.7 A for the M - axis. It features high power, high acceleration and increased torque at low speed. With a compact size, it utilizes power source regeneration technology to reduce power consumption. Its dimensions are 380 mm (H) x 90 mm (W) x 307 mm (D)

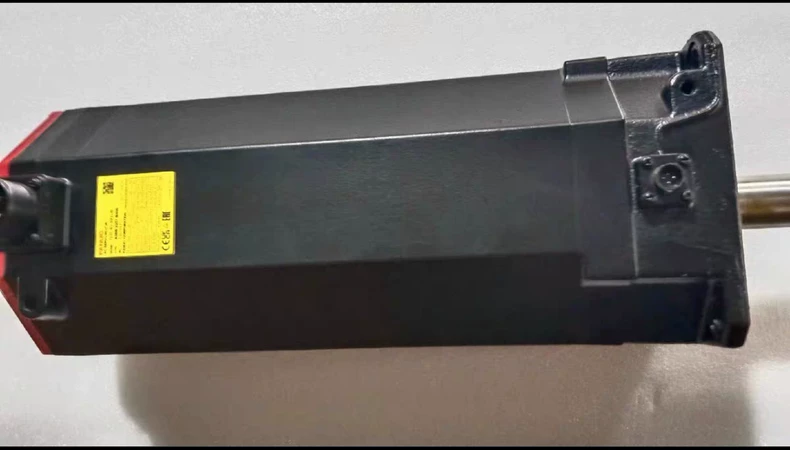

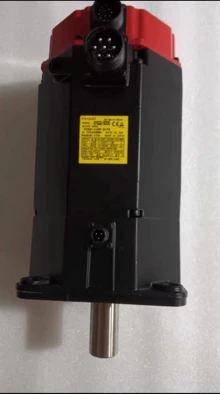

Fanuc • Model: A06B-0165-B175 • Type: AC Servo Motor • Output: 3.8kW • Speed: 3000rpm • Voltage: 143V • Frequency: 200Hz • Phase: 3-Phase • Current: 16A • Encoder: A64 W/Brake • Origin: Japan

FANUC A06B-2257-B400

Linear Motor (αi, 400N)

3m/s | 1μm

Key Params: #2021/#2084

FANUC A06B-6141-H037 • Servo Amp (αiSV, 3.7kW) • FSSB | Single-axis • Key Params: #1023/#2021/#2085

FANUC A06B-6141-H055 • Servo Amp (αiSV, 5.5kW) • FSSB | Single-axis • Key Params: #1023/#2021/#2085

FANUC A06B-6141-H045 • Servo Amp (αiSV, 4.5kW) • FSSB | Single-axis • Key Params: #1023/#2021/#2085

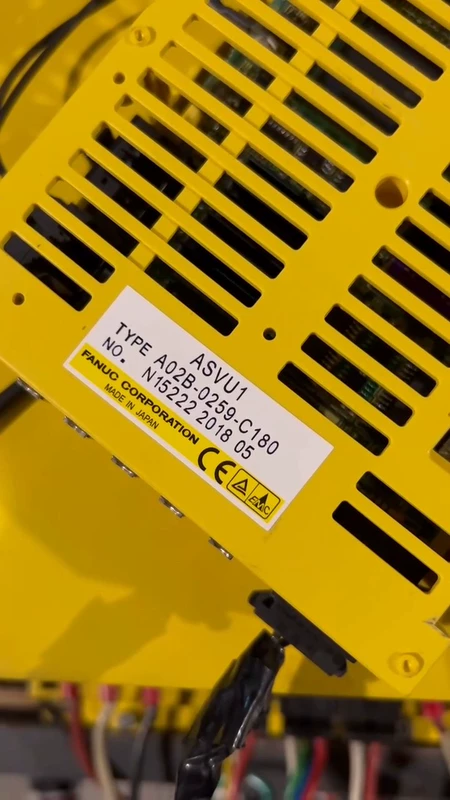

FANUC A02B-0259-C180 • I/O Module (96in/64out) • 24V DC • Key Params: #3000s/#6000s
