Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series CAN-IO Modules (for CANopen networks) Product Model CAN-4AI/UI Product Type 4-Channel Analog / Universal Input Module Communication Protocol CANopen (CiA DRP-404) Number of Channels 4 Input Types (Configurable per channel) • Voltage: 0-10V, ±10V • Current: 0-20mA, 4-20mA • Resistance: e.g., for Pt100/1000 RTDs Resolution 16-bit Electrical Isolation Channel-to-channel and channel-to-bus isolation Power Supply 24 V DC (typical for fieldbus modules) Mounting DIN Rail Mounting (35 mm) Connection Removable screw terminal block Status Indication LEDs for power and network status

Technical Parameters Parameter Category Specification Details General Model EU5C-SWD-PF2-1 The full part number as listed. Product Line Crouse-Hinds Series / Power Xpert Metering Part of Eaton's comprehensive metering solution. Electrical Characteristics System Type Single-Phase, 2-Wire (1P2W) Rated Voltage 120/240V AC Maximum Voltage 277V AC Current Rating 50 Amps (Typically used with a 50:5 A current transformer - CT) Frequency 50/60 Hz Measurement Capabilities Voltage (V) Yes Current (I) Yes (via external Current Transformer) Power (kW, kVA) Yes (Real and Apparent) Energy (kWh, kVAh) Yes Power Factor (PF) Yes (as indicated by "-PF2-" in the model number) Frequency (Hz) Yes Demand Yes Communication Protocol Wi-Fi (IEEE 802.11 b/g/n) Data Interface Integrated Wi-Fi radio for network connection. Physical & Environmental Mounting Designed for hardwired installation into a dedicated meter socket within an Eaton enclosure or panelboard. Enclosure Rating The meter itself is typically installed inside an enclosure, which provides the IP rating. Standards & Compliance Accuracy ANSI C12.20 Class 0.5 (Revenue Grade Accuracy) Safety Standards UL Listed, CE Marked

Technical Parameters Parameter Category Specification Details General Model EU5C-SWD-DP Form 4S, Three-Phase, 4-Wire Meter with Advanced Features ("DP") Product Line Eaton Crouse-Hinds Series / Power Xpert Metering Electrical Characteristics System Type Three-Phase, 4-Wire (3P4W - Wye) Rated Voltage 347/600V AC (Line-to-Line) Current Input Via external Current Transformers (CTs). Common secondary ratings: 5A or 1A. Frequency 50/60 Hz Measurement Capabilities Basic Parameters Volts (L-N, L-L), Amps, Frequency, Real/Reactive/Apparent Power (kW, kvar, kVA), Power Factor, Demand (kW, kVA, A) Energy Import/Export kWh, kvarh Power Quality Total Harmonic Distortion (THD) for V & I, Individual Harmonics, Min/Max/Average recordings, Sag/Swell detection. Communication Communication Ports The "DP" variant typically includes multiple ports, often an Ethernet port and a RS-485 serial port. Protocols Commonly supports Modbus TCP/IP (over Ethernet), BACnet IP (over Ethernet), and Modbus RTU (over RS-485). Display Integrated backlit LCD, often graphical. Accuracy Standard ANSI C12.20 Class 0.2 (Revenue Grade) Voltage & Current ±0.1% of Reading Power & Energy ±0.2% of Reading Physical & Environmental Mounting Hardwired installation into a dedicated meter socket within an Eaton enclosure. Operating Temperature -40°C to +70°C (-40°F to +158°F)

Technical Parameters Parameter Category Specification Details General Model DIL-SWD-32-002 DIL Series, Side-Mount, Screw Terminal, 2NO Contact Block Compatible Main Devices Eaton DIL Contactors and Relays Must be used with specific DIL series models. Contact Characteristics Number of Contacts 2 NO (Normally Open) Contact Type Screw terminal. Rated Operational Current (Ith) Typically 6 A (e.g., at 250V AC). Rated Thermal Current (Ithe) 10 A. Rated Operational Voltage (Ue) Up to 250V AC / 30V DC. Mechanical Characteristics Mounting Side-mounted onto compatible DIL contactors/relays. Electrical Durability Typically > 10 million operations. Mechanical Durability Typically > 20 million operations. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, CE, IEC/EN 60947-5-1.

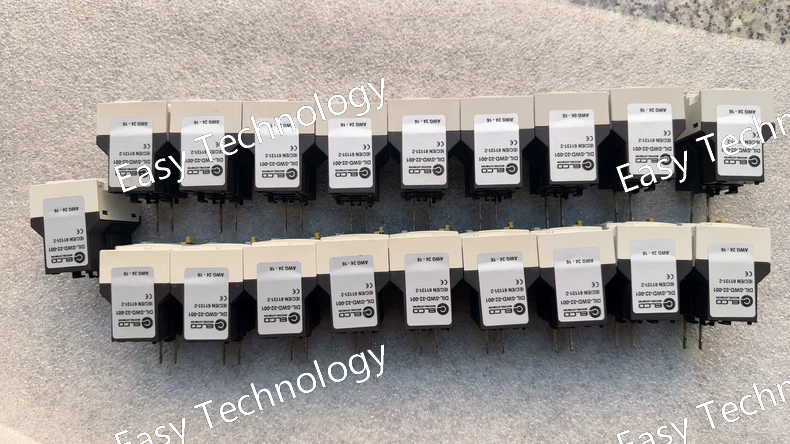

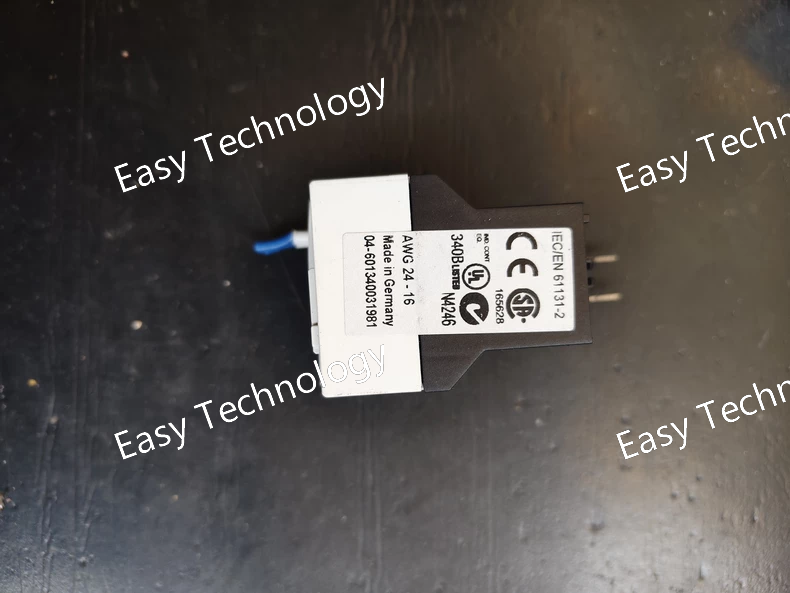

Technical Parameters Parameter Category Specification Details General Model DIL-SWD-32-001 DIL Series, Side-Mount, Screw Terminal, 1NO+1NC Contact Block Compatible Main Devices Eaton DIL Contactors and Relays Must be used with specific DIL series models. Contact Characteristics Number of Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) - One Form C (Changeover) contact. Contact Type Screw terminal. Rated Operational Current (Ith) Typically 6 A (e.g., at 250V AC). Rated Thermal Current (Ithe) 10 A. Rated Operational Voltage (Ue) Up to 250V AC / 30V DC. Mechanical Characteristics Mounting Side-mounted onto compatible DIL contactors/relays. Electrical Durability Typically > 10 million operations. Mechanical Durability Typically > 20 million operations. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, CE, IEC/EN 60947-5-1.

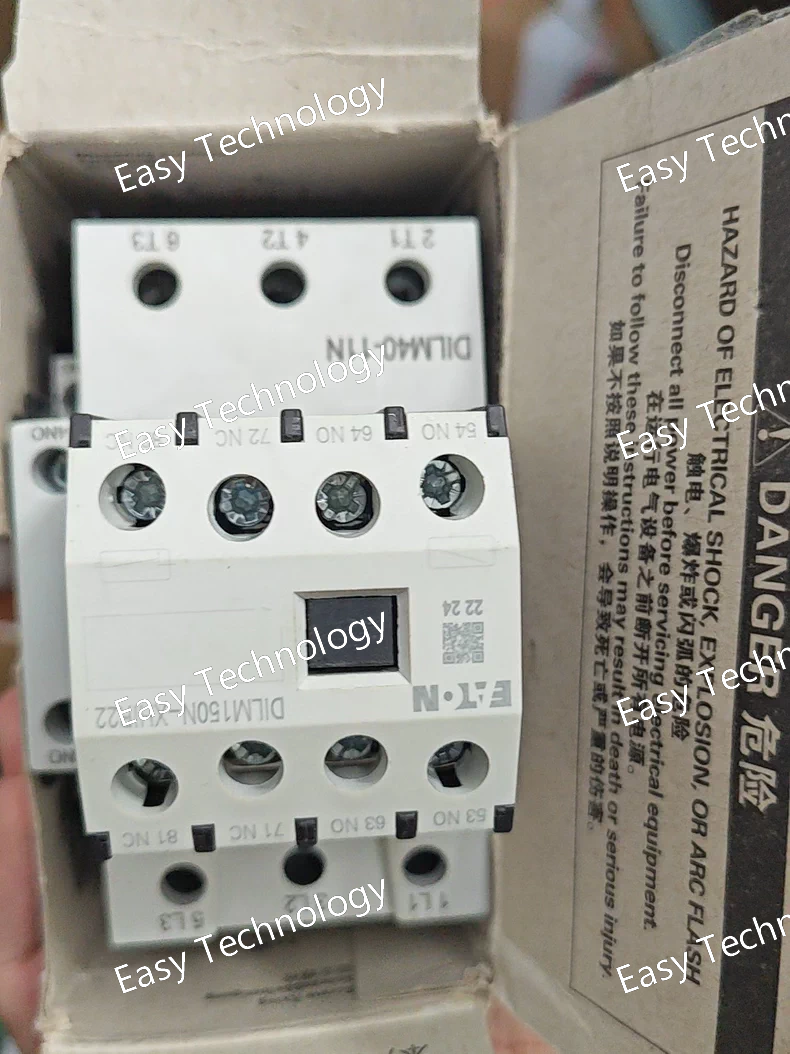

Technical Parameters Parameter Category Specification Details General Model DILM40-11N DILM Series, 40A, Standard Design Product Line Eaton DILM Contactors Main Contact Characteristics Rated Operational Current (Ie) 40 A (at AC-3, 400V) Rated Thermal Current (Ith) 55 A Rated Insulation Voltage (Ui) 690 V Rated Operational Voltage (Ue) Up to 690V AC Motor Power Rating (AC-3) 22 kW (30 HP) @ 400V AC Poles 3 (Main Poles) Coil Characteristics Coil Voltage 24V DC Power Consumption Approx. 8 W (DC) Pick-up Voltage Typically 80-110% of rated voltage Mechanical Characteristics Electrical Durability Typically > 1 million operations (at rated current) Mechanical Durability Typically > 10 million operations Mounting Standard 35mm DIN Rail or screw mounting Auxiliary Contacts Standard Configuration Typically 1 Normally Open (NO) auxiliary contact Expandable Yes, with additional auxiliary contact blocks Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, IEC/EN 60947-4-1

Technical Parameters Parameter Category Specification Details General Model PKE-XTU-32 Power Xpert 1000 External CT Module, 32A Compatible Meter Eaton Power Xpert 1000 (PXM, PXG series) Must be used with compatible Eaton meters. Electrical Characteristics Rated Primary Current (Ipr) 32 A Rated Secondary Current (Is) Typically 5 A (or 1A, must be verified with datasheet). System Type 3-Phase, 4-Wire (3P4W) Rated Frequency 50/60 Hz Accuracy Class Typically 0.3% or better, suitable for revenue-grade metering. Rated Insulation Voltage Typically 600V or higher. Mechanical Characteristics Mounting Designed for DIN rail mounting or panel mounting. Connection Screw terminals for both primary and secondary wiring. Standards & Compliance Safety Standards ANSI C12.xx, UL, CE, IEC 61869-2 (for Instrument Transformers)

Technical Parameters Parameter Category Specification Details General Model P5-160/V/SVB/HI10 P5 Series, 160A, Voltage, Bypass, Enclosure, Control Type Product Line Eaton P5 Soft Starter Electrical Characteristics Rated Operational Current 160 A (This is the maximum current the soft starter is designed to handle). Rated Motor Power Dependent on voltage. Example: Approx. 75 kW / 100 HP @ 400V AC. Rated Voltage The "V" indicates a standard voltage version, typically up to 500V AC / 690V AC (50/60 Hz). Control Supply Voltage Typically a separate low voltage supply (e.g., 24V DC or 110-230V AC) for the control electronics. Key Features Bypass Contactor Yes (VB) - Integrated internal bypass contactor. Enclosure The "S" likely indicates a Standard enclosure, possibly IP00 for panel mounting. Control Interface HI10 - Advanced human interface with LCD display and keypad. Starting Modes Voltage ramp, current limit. Protection Functions Overload, phase loss, current unbalance, jam, underload, excessive start time. Mechanical Characteristics Mounting Panel-mounted or chassis-mounted. Connection Screw terminals.

Technical Parameters Parameter Category Specification Details General Model EMT6-DBK EMT6 Meter Enclosure, Dark Bronze Compatible Meter Eaton Power Xpert 6000 (EMT6) Series Meters Must be used with EMT6 series meters. Enclosure Characteristics Type Surface Mount Enclosure Color DBK - Dark Bronze Material Typically high-impact, UV-resistant thermoplastic or polycarbonate. Protection Rating (IP) Typically IP40 (Protection against solid objects >1mm, no protection against water). Suitable for indoor, dry locations. Physical Characteristics Mounting Mounts on a wall or flat surface via integrated mounting holes. Transparent Cover Features a clear window allowing for full visibility of the meter's display.

Technical Parameters Parameter Category Specification Details General Model MSAA66166 Memshield 3, 63A, 3-Pole, C-Curve, 10kA Product Line Eaton Memshield 3 (MS3) Electrical Characteristics Rated Current (In) 63 A Number of Poles 3 Rated Voltage (Ue) 415V AC / 240V AC Tripping Characteristic C-Curve (Instantaneous trip: 5 to 10 x In) Rated Breaking Capacity (Icn) 10 kA (at 400V AC according to IEC 60898) Rated Frequency 50/60 Hz Mechanical Characteristics Mounting Standard 35mm DIN Rail Electrical Life Typically > 10,000 cycles Terminal Type Screw clamp terminals suitable for copper conductors. Standards & Compliance Safety Standards IEC/EN 60898-1, CE marked.
