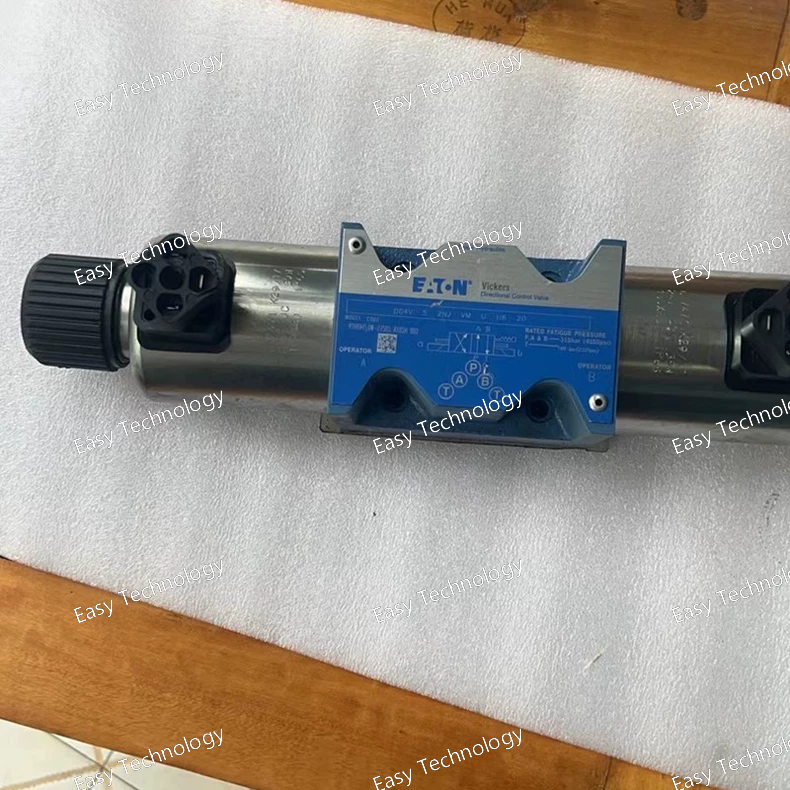

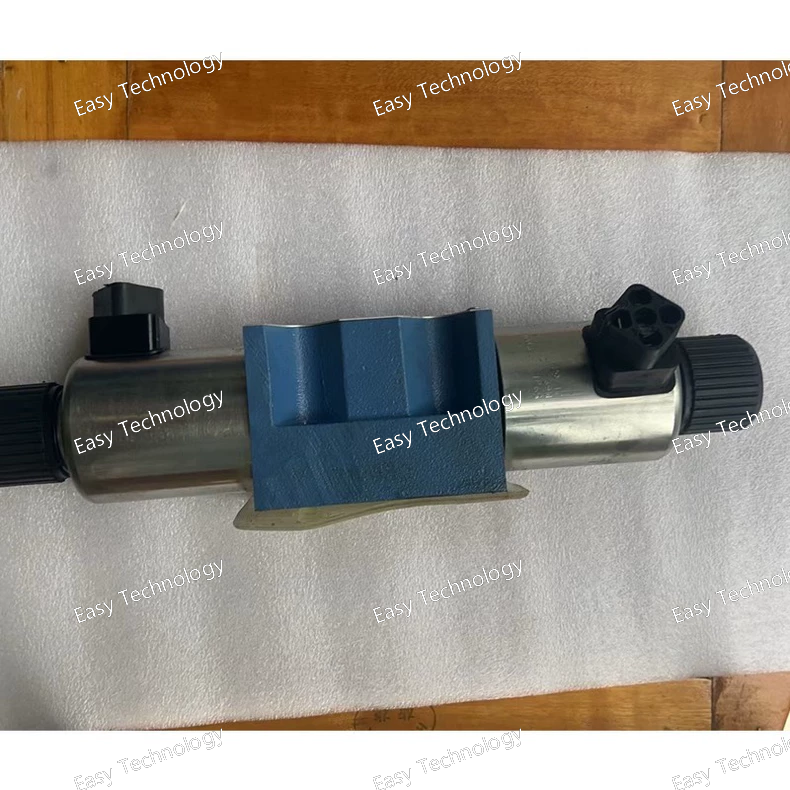

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2A-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2A: All Ports Blocked (Closed Center) A, B, P, T all blocked. Ideal for positive load holding. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2N-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2N: Motor Spool (A&B Connected, P & T Blocked) A ↔ B, P blocked, T blocked. Allows motor to freewheel. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

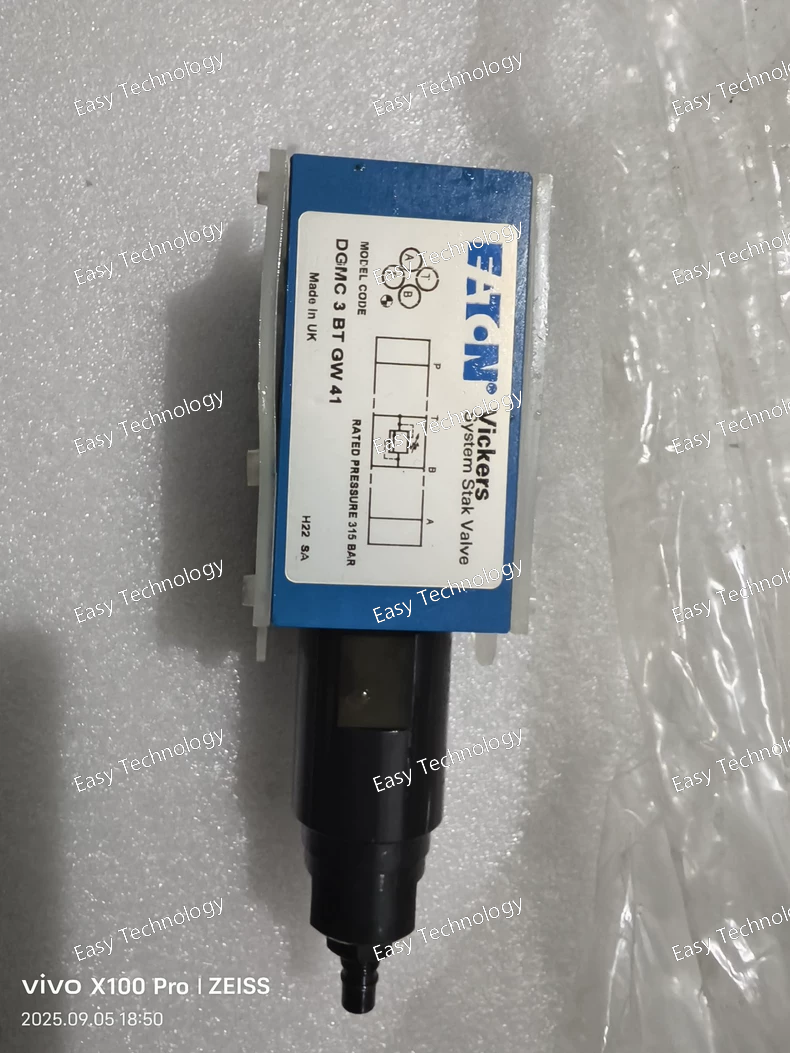

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-3-BT-GW-41 Product Type Integrated Hydraulic Manifold Block Port Size D03 (NG6) The "-3-" denotes the interface size, ISO 4401. Port Thread 7/16"-20 UNF Common for D03 size. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on internal restrictions.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CG5V Proportional Control Valve Series Model Number CG5V-6-FW-O-F-M-U-H5-20 Valve Type Proportional, 4-Way, 3-Position Directional Valve Porting Size Size 06 (D06) ISO 4401 standard Actuation Type Proportional Solenoid Spool Type -FW-: Flow Control Spool Designed for precise flow regulation. Compensator Type -O-F-: Pressure Compensator Maintains a constant pressure drop across the metering orifice for consistent flow. Solenoid Type -M-U-: Proportional Solenoids (2x) Wet-pin, DC versions. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector. Electronics -20: Specific onboard electronics (OBC) version. Defines the signal type and control response. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate Up to ~ 60 L/min (16 US gpm) Dependent on the "FW" spool and compensator. Input Signal Typically ±9 VDC, ±10 VDC, or 0-20 mA Defined by the "-20" electronics. Hysteresis < 3% Typical for high-performance proportional valves. Linearity < 5%

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3-33C-M-U-BX5-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Centered + Detented Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Offset from one side, Detented from the other Complex actuation. Solenoid Type Dual Solenoids Both are single solenoids. Spool Configuration -33C-: Spring Offset, Solenoid Center, Detented Pos1 (Spring): P→B & A→T Pos2 (Solenoid A): Defined by 'C' Pos3 (Solenoid B): Detented, flow path is typically P→A & B→T Center Position (when Solenoid A is energized) C: Likely a Tandem or Float type center The "C" often indicates P is connected to T in the center position, but the exact configuration of A and B ports must be verified. Spool Type -60: Critical Center with Bypass Provides the main spool functionality with internal leakage paths to reduce shock. Electrical Connection -BX5-: Sealed, flying lead cable with a 5-pin connector This is different from the standard DIN connector, providing a direct cable connection. Voltage Typically 12 VDC Defined by the coil ordered with the -BX5- connector. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Type Mineral-based hydraulic oils, synthetics

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3S-6C-M-U-H5-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Centered + Solenoid Assisted Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Offset Solenoid Type Dual Solenoids Both are single solenoids. Spool Configuration -3S-6C-: Spring Offset with Solenoid Center Pos1 (Spring): P→B & A→T Pos2 (Solenoid A): Center (Float - A&T, B&T, P blocked) Pos3 (Solenoid B): P→A & B→T Center Position (when Solenoid A is energized) 6C: Float Center A → T, B → T, and P blocked. This allows the actuator to float. Spool Type -60: Critical Center with Bypass Provides the main spool functionality with internal leakage paths to reduce shock. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector with manual override. Voltage Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

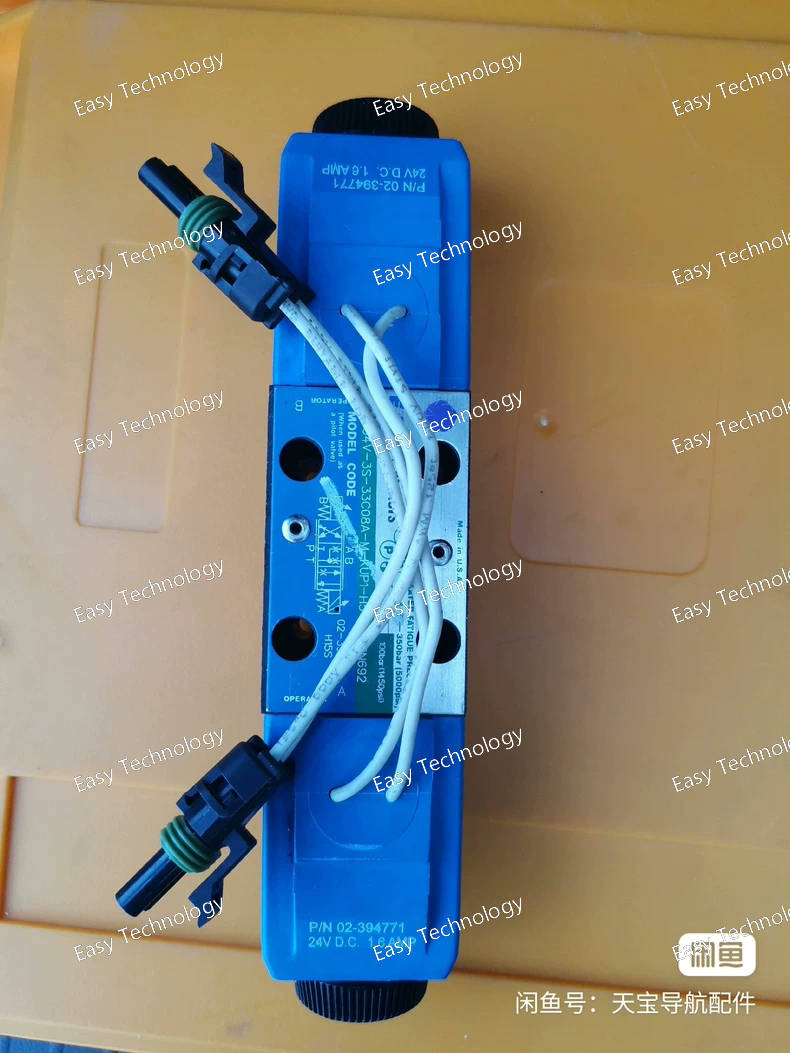

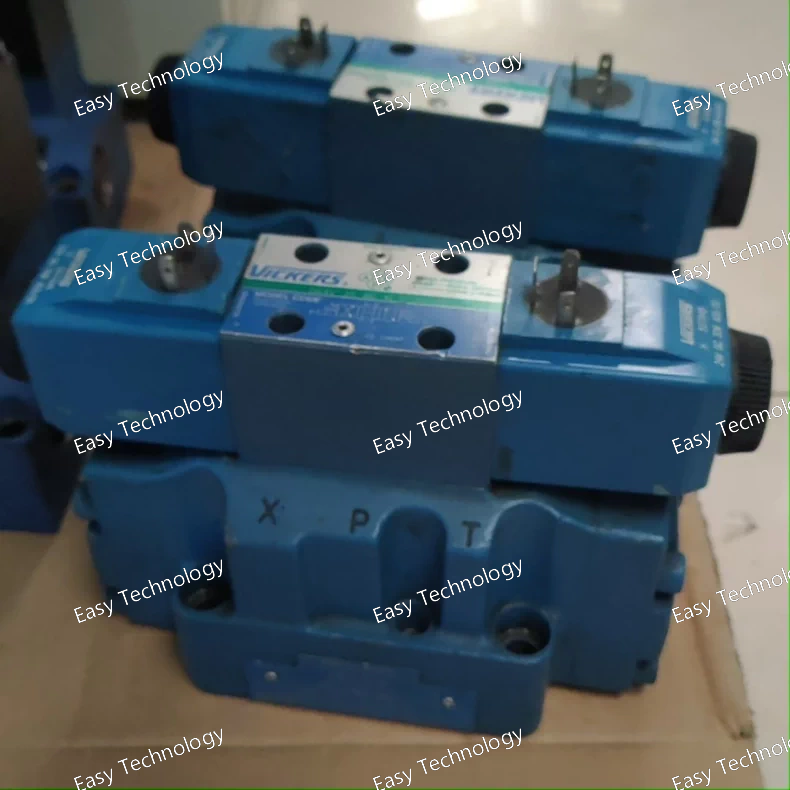

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton KDG4V Pilot-Operated Solenoid Valve Series Model Number KDG4V-3S-33C08A-M-KUPI-H5-60-EN692 Valve Type Pilot-Operated Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Center + Detented Porting Size D03 (NG6) ISO 4401 standard Actuation Type Pilot-Operated Solenoid, Spring Offset & Detented Solenoid Type -M-: Single Solenoids (for pilot stage) Pilot Supply -KUPI-: Internal Pilot Supply The valve uses system pressure from the P port to power the pilot stage. Spool Configuration -3S-33C08A-: Complex spool with spring offset, solenoid center, and detent. The "08A" often specifies a power beyond function in one position. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector with manual override. Spool Type -60: Critical Center with Bypass Compliance / Standard -EN692: European standard for "Machine tools - Safety - Presses". This valve is configured for use on machinery complying with this safety directive. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Pilot Pressure Requirement Requires sufficient system pressure to shift reliably.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-2-3-AB-CW-BA-CW-41 Product Type Integrated Hydraulic Manifold Block Port Size (P, T) D02 (NG4) The "-2-" likely denotes the primary pressure and tank port size. Work Port Size (A, B) D03 (NG6) The "-3-" likely denotes the work port (A, B) size for each section. Number of Sections 2 Identical Work Sections The pattern "-AB-CW-" and "-BA-CW-" confirms two parallel sections. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate (Total) ~ 75 L/min (20 US gpm) Shared between the two sections.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Division Eaton Aerospace Model Number ICE30F35S5 Product Type Brushless AC Generator (Alternator) Output Power 30 kVA (or similar, based on "30" in model number) Kilo-Volt-Ampere, the apparent power rating. Output Phase 3-Phase Standard for aircraft AC systems. Output Voltage 115/200 VAC Typical aircraft AC voltage. Output Frequency 400 Hz Standard frequency for aerospace applications. Cooling Method Air-cooled or Oil-cooled Common methods for aircraft generators. Speed Range Designed to operate at a specific constant speed (e.g., 6000 RPM, 8000 RPM) Aircraft generators run at a constant speed. Mounting Flange mount per aerospace standard Compliance Meets relevant aerospace standards (e.g., DO-160, MIL-STD)

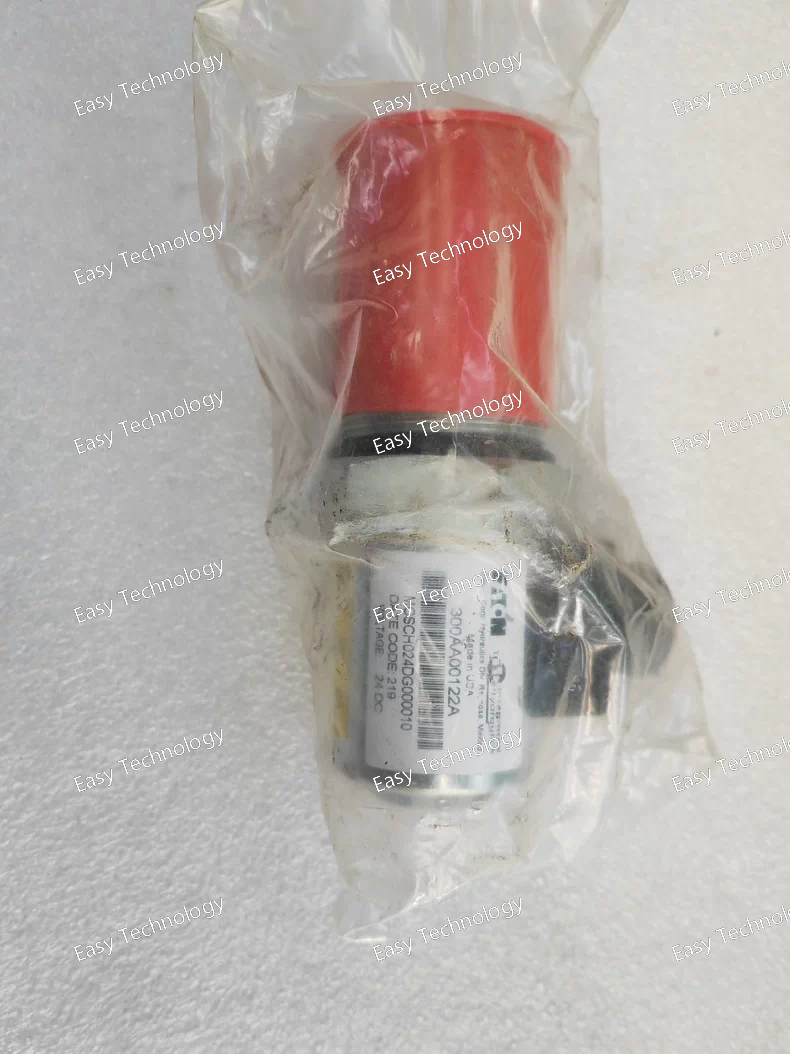

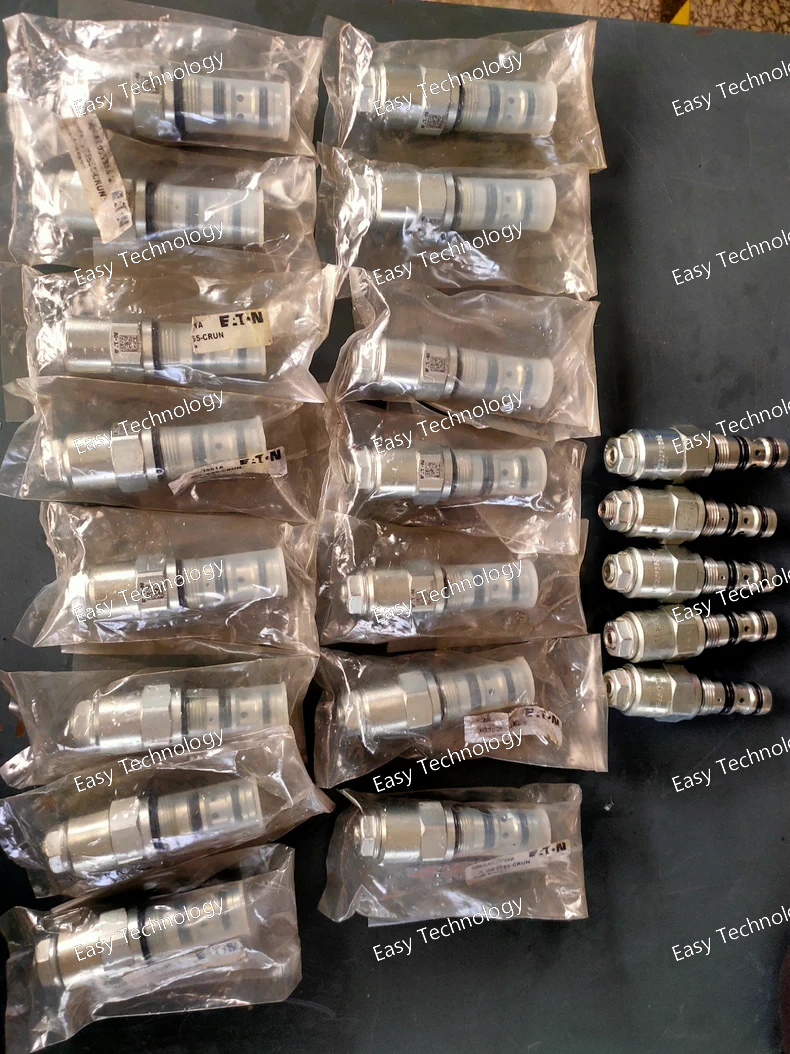

Technical Specifications Electrical Voltage: 24 V DC Power Rating: approx. 26–29 W Duty Rating: Continuous duty (operates at 85%–110% of rated voltage) Mechanical / Environmental Connector Type: DIN 43650-A (ISO 4400) Coil Housing: Glass-filled nylon Ingress Protection: IP65 (dust-tight and water-resistant) Operating Temperature: Up to 100 °C Weight: approx. 0.14–0.18 kg Hydraulic Compatibility Used with Eaton/Vickers screw-in cartridge valves (Size 10 / 12 / 16 / 20) Suitable for valves rated up to 350 bar (5075 psi) Compatible with standard hydraulic fluids (e.g., MIL-H-5606, SAE 10/20) Design / Mounting Solenoid coil only (no ports) Explosion-proof-style construction Fits standard Eaton cartridge-valve solenoid tubes
