Parameter Specification Manufacturer / Series Eaton, HJD Series (Current Limiting Fuse) Model Number HJD 65k Product Type Current Limiting Fuse Rated Voltage Typically 600V AC or 690V AC (Must verify from datasheet) Rated Breaking Capacity (Icn) 65 kA (65,000 Amps RMS Symmetrical) Rated Current (In) Various ratings available (e.g., 100A, 200A, 400A, etc.). The "65k" refers to the interrupting rating, not the current rating. The specific amperage rating is a separate value that must be specified (e.g., HJD 200A 65k). Standards Compliance IEC 60269-1, IEC 60269-2 (or UL/ANSI 248-1 for relevant versions) Let-through Current (Ipk) Very low compared to the prospective fault current (Specific values can be found in peak let-through current charts). Let-through Energy (I²t) Very low, providing excellent thermal protection for downstream devices. Mounting / Style Typically a bolt-on or clip-mount design for secure connection in fuse bases or holders.

Parameter Specification Manufacturer / Series Eaton (Often part of the Moeller or DIL product line) Model Number LZM C3-A320A Product Type Thermal Overload Relay Pole Configuration 3-Pole Rated Operational Current (Ith) 320 A Setting Current Range Adjustable, typically within a range such as 200 - 320 A (The exact range must be verified from the datasheet) Trip Class Class 10 (Standard for general purpose motors) Ambient Temperature Compensation Yes (Standard in most LZM relays) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 Mounting Snap-on attachment to a compatible contactor (e.g., Eaton DILM series) Auxiliary Contacts Typically at least 1 NO (Normally Open) and 1 NC (Normally Closed) Reset Mode Manual reset (Automatic reset may be available as an option) Ambient Temperature -25°C to +60°C

Parameter Specification Manufacturer / Series Eaton, LSM Series (Current Sensing Module) Model Number LSM C3 -500A Product Type Current Transformer / Current Transducer Rated Primary Current (Ipn) 500 A Rated Secondary Output Typically 5A or 1A AC (for traditional CTs), or a voltage signal (e.g., 0-5V/0-10V) for transducer types. This is a critical detail to confirm. Accuracy Class Typically Class 1 or Class 0.5 (for measurement) Frequency 50/60 Hz Rated Insulation Voltage Typically 0.72 / 3 kV Mounting Designed to clamp directly onto a busbar (specific dimensions required) Standards Compliance IEC 61869-1, IEC 60044-1

Parameter Specification Manufacturer / Series Eaton (Often part of the Moeller or DIL product line) Model Number LZM3-320A Product Type Thermal Overload Relay Pole Configuration 3-Pole Rated Operational Current (Ith) 320 A Setting Current Range Adjustable, typically within a range such as 200 - 320 A (The exact range must be verified from the datasheet) Trip Class Class 10 (Standard for general purpose motors) Ambient Temperature Compensation Yes (Standard in most LZM relays) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 Mounting Snap-on attachment to a compatible contactor (e.g., Eaton DILM series) Auxiliary Contacts Typically at least 1 NO (Normally Open) and 1 NC (Normally Closed) Reset Mode Manual reset (Automatic reset may be available as an option) Ambient Temperature -25°C to +60°C

Parameter Specification Manufacturer / Series Eaton, CSR Series Model Number CSR2200N Product Type Solid-State Soft Starter Enclosure Type NEMA Type 1 / NEMA Type 12 (Indoor use, protects against dust, dripping liquids, and light splashing) Rated Current 200 Amps (at a specific voltage, e.g., 575V AC) Motor Power Rating Approximately 150 HP / 110 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Control Method Digital, microprocessor-based Starting Mode Voltage ramp with adjustable initial torque and ramp time. Stopping Mode Ramp-to-stop (optional), Coast-to-stop, Precision Stop. Key Features • Adjustable Start Voltage/Torque • Adjustable Ramp Time • Integrated Bypass Contactor • Electronic Overload Protection • Phase Loss Protection • Multiple Programmable Inputs/Outputs Communication Optional communication modules (e.g., DeviceNet, Modbus, Profibus) are often available. Standards Compliance UL 508, CSA C22.2, CE

Parameter Specification Manufacturer / Series Eaton, PN Series Air Circuit Breaker Model Designation PN3 3P630A Product Type Fixed Mounted Air Circuit Breaker (ACB) Pole Configuration 3-Pole Rated Current (In) 630 A (The continuous current rating) Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Trip Unit Type Thermal-Magnetic (TMD) or Electronic (PR221/222) (Configuration dependent) Breaking Capacity (Icu/Ics) High (e.g., 50kA, 65kA, or 100kA at 415V AC). This is a critical specification that must be verified from the specific unit's rating label or datasheet. Mounting Fixed, bolted connection within switchgear Standards Compliance IEC 60947-2 Electrical Life Several thousand cycles Mechanical Life 10,000+ cycles Control Voltage Dependent on the trip unit and closing mechanism (e.g., 110V AC/DC, 220V AC)

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN2-VE100 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 2-Pole Rated Current (In) 100 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("V" - Versatile) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

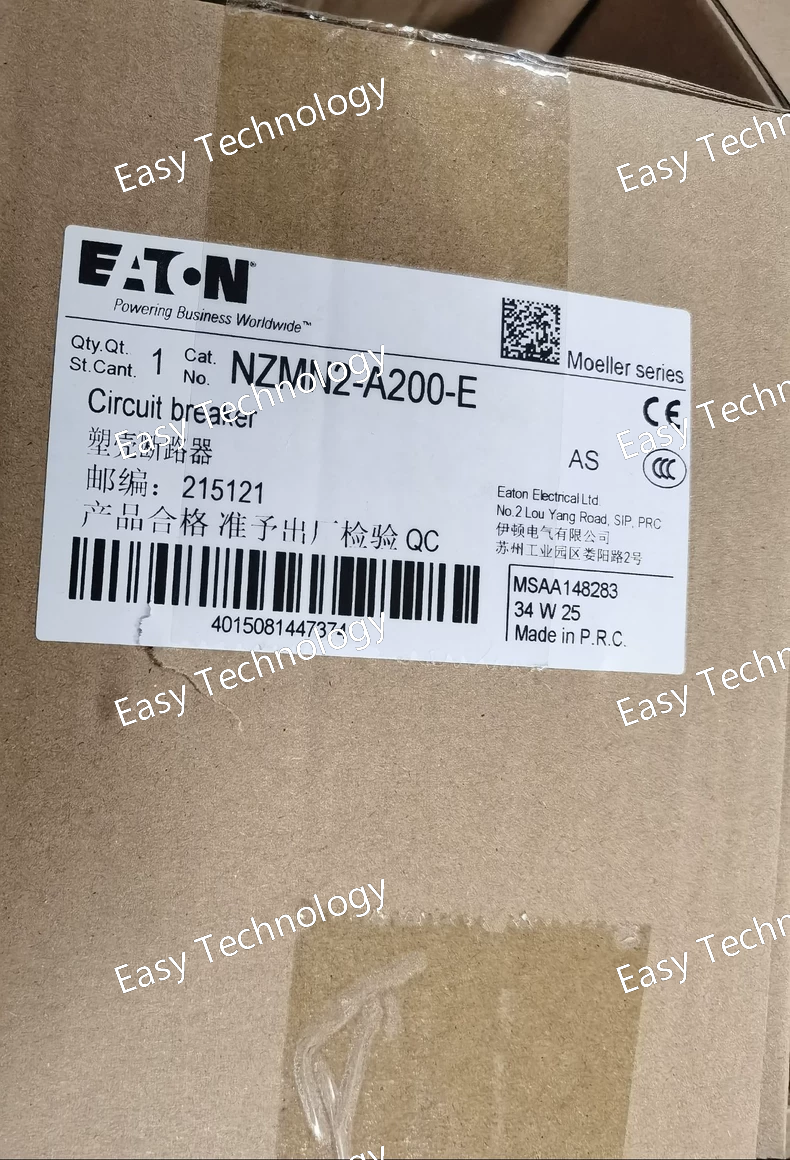

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN2-A200-E Product Type Molded Case Circuit Breaker (MCCB) Pole Configuration 2-Pole Rated Current (In) 200 A Trip Unit Type Thermal-Magnetic, Fixed Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Breaking Capacity (Icu) High, specific value (e.g., 50kA, 70kA, 100kA) depends on voltage and must be verified from the datasheet. The "-E" indicates a current-limiting design for a high Icu. Utilization Category A (For both distribution and cable protection) Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Electrical Life 5,000 cycles Mechanical Life 10,000 cycles Ambient Temperature -25°C to +70°C (Derating above 50°C)

Parameter Specification Manufacturer / Series Eaton (often sold under the Moeller or IZM brand in some markets) Model Number LZMC2-A160-I Product Type Thermal Overload Relay Pole Configuration 2-Pole Rated Operational Current (Ith) 160 A Setting Current Range Adjustable, typically 100 - 160 A (exact range to be verified from datasheet) Ambient Compensation Yes (Indicated by the "-I" suffix) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 Mounting Snap-on attachment to a compatible contactor (e.g., Eaton DIL series) Auxiliary Contacts Typically 1 NO (Normally Open) + 1 NC (Normally Closed) Trip Class Class 10 (Standard for general purpose motors) Ambient Temperature -25°C to +60°C (with compensation) Reset Mode Manual reset (Automatic reset may be available as an option)

Parameter Specification Manufacturer / Series Eaton, W-Series Model Number ETW1-2000 Product Type Fixed Mounted, Low Voltage Power Circuit Breaker Frame Size 2000A Frame Rated Current 2000 Amps (The actual continuous current rating may be set via the trip unit) Rated Operational Voltage 600V AC Short-Time Withstanding Rating Typically 65 kA or 100 kA for specific durations (e.g., 30 cycles) Interrupting Rating High, typically 65 kA or 100 kA at 480V AC (Must verify from trip unit and specific design) Trip Unit Solid-State / Electronic Trip Unit (e.g., Eaton's PCM, PCD, or PCS series) Protection Functions Adjustable Long-Time (L), Short-Time (S), Instantaneous (I), Ground Fault (G) Mounting Fixed, bolted connection within switchgear Standards Compliance UL 1066 (Standard for Low-Voltage AC and DC Power Circuit Breakers) Operating Mechanism Stored-energy spring mechanism (allows quick closing and opening) Control Power Required for the trip unit and operating mechanism (e.g., 125V DC or 120V AC)
