Technical Parameters Parameter Value Notes Maximum Operating Pressure 25 bar 362 psi (standard) Rated Flow Capacity 60 L/min 16 US gpm Port Size 1-1/4" SAE Straight thread Filter Rating 10 micron Absolute (βₓ≥75) Bypass Setting 2.5 bar 36 psi (typical) Element Material Glass fiber With resin impregnation Housing Material Steel Painted finish

Technical Parameters Parameter Value Notes Maximum Operating Pressure 250 bar 3,625 psi Rated Flow Capacity 15 L/min 4 US gpm per section Port Size 1/2" NPTF Standard mobile connections Spool Configuration 3-position, 4-way Spring-centered Actuation Type Mechanical lever Manual control Pressure Rating - Work Ports 250 bar 3,625 psi - Inlet Port 210 bar 3,045 psi Leakage < 30 mL/min At rated pressure

Technical Parameters Parameter Value / Description Notes Thread Size / Cavity C08-2 This is the standardized cavity code per CETOP RP 121 H or ISO 7789. It defines the thread and installation dimensions. Nominal Size 8 Maximum Operating Pressure 350 bar (5,075 psi) Cracking Pressure (Free Flow) Typically < 0.4 bar (6 psi) Very low pressure drop in the free-flow direction. Pilot Ratio ~ 3:1 to 4:1 (e.g., 3.5:1) A common ratio, meaning the pilot pressure required to open the valve against the load pressure is roughly Load Pressure / Pilot Ratio. This is a key specification to verify. Maximum Flow Approx. 40 - 60 L/min (10 - 16 US gpm) Dependent on permissible pressure drop. Seal Material Typically Nitrile (Buna-N) Standard for petroleum-based hydraulic fluids.

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 3-position, 4-way Spring-centered Actuation Force 50-70 N Typical operating force Mechanical Life > 1 million cycles Mounting ISO 4401 Standard interface Fluid Compatibility Mineral-based hydraulic oil Petroleum-based fluids Typical Applications Mobile construction machinery Agricultural equipment Material handling systems Industrial hydraulic controls Forestry equipment Special mobile vehicles

Technical Parameters Parameter Value Notes Nominal Size 8 Rated Flow 40 L/min 10.6 US gpm @ 70 bar ΔP Maximum Operating Pressure 315 bar 4,570 psi Supply Pressure 210 bar maximum 3,045 psi Control Signal ±10 mA or ±10 V DC Proportional input Hysteresis < 1.5% Linearity < 3% Frequency Response > 80 Hz (±45° phase lag) At 50% rated stroke Null Leakage < 1.5 L/min At rated pressure

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 2-position, 4-way Solenoid Type Wet pin DC Continuous duty Manual Override Standard For emergency operation Mounting ISO 4401 Standard interface Fluid Compatibility Mineral-based hydraulic oil Typical Applications Industrial machinery Hydraulic power units Mobile equipment Press systems Machine tools

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 3-position, 4-way Critical center Solenoid Type Wet pin DC Continuous duty Voltage 24V DC Code 60 Power Consumption 26W At 20°C (68°F) Protection Rating IP65 Solenoid standard

Technical Parameters Parameter Value Notes Nominal Size 16 Standard interface dimension Maximum Flow Rate 40 L/min 10.6 US gpm (typical) Minimum Controlled Flow 2 L/min 0.5 US gpm (typical) Maximum Operating Pressure 315 bar 4,570 psi Control Signal 0-10V DC or 4-20mA Proportional analog input Hysteresis < 3% Typical value Linearity < 5% Typical value Response Time < 50 ms To 90% of commanded value Operating Temperature -20°C to +70°C -4°F to +158°F

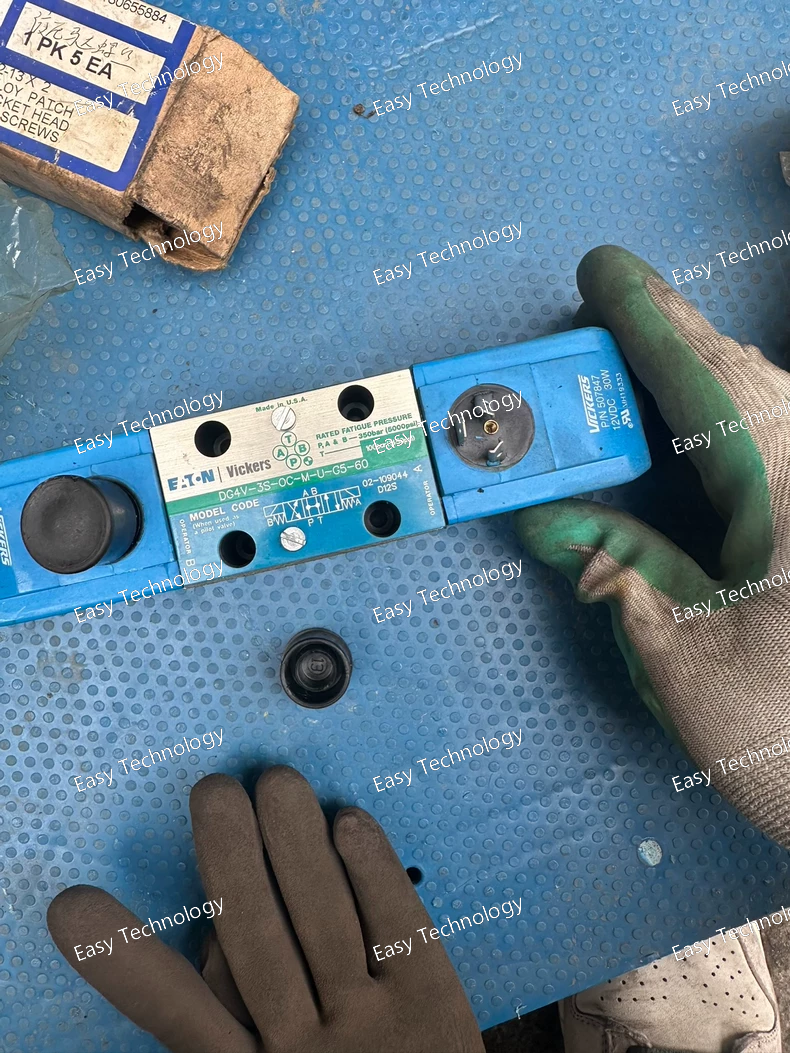

Technical Parameters Code Segment Description Specification DG4V Valve Series 4-Way Directional Valve 3 Size NG03 (CETOP 3) Interface 6C Spool Type Normally Closed Configuration M Solenoid Type Wet Pin DC Solenoid (NA Standard) U Electrical Connection Single Metric Connector H7 Seal Material Nitrile (Buna-N) Rubber 60 Voltage Code 24V DC Technical Parameters Parameter Value Condition/Note Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 20 L/min 5.3 US gpm Port Size NG03 CETOP 3 Standard Voltage 24V DC Code 60 Protection Rating IP65 Solenoid Standard Spool Configuration Normally Closed All Ports Blocked in Neutral Return Type Spring Automatic Center Return Fluid Compatibility Mineral-based Hydraulic Oil - Operating Viscosity 10-100 cSt Optimal Range

Technical Parameters Parameter Value / Description Notes Nominal Size 16 --- Maximum Operating Pressure (P, A, B ports) 350 bar (5,075 psi) --- Maximum Operating Pressure (T port) 210 bar (3,045 psi) --- Maximum System Flow Up to 120 L/min (32 US gpm) per inlet section Dependent on pump and system design Recommended Maximum Flow per Section 60 - 80 L/min (16 - 21 US gpm) For optimal performance Control Signal Proportional, typically 24V DC PWM Requires a compatible electronic controller Solenoid Resistance ~ 5 - 20 Ohms (varies with model and coil) Check specific datasheet Pressure Compensation Optional (Standard or Load-Independent) A key feature for consistent speed under varying loads Hysteresis < 3% Indicates high repeatability and control accuracy Internal Pilot Supply Standard (from inlet module) --- External Pilot Supply Optional For special operating conditions Port Size Typically SAE 12 (3/4") for work ports May vary
