Key Parameters Category Description / Value Product Line Eaton DILM Model Type DILM32-01 Rated Operational Current (Iₑ) at AC-3 32 A (For squirrel-cage motors: Starting, switching off during running) Rated Operational Power at AC-3 ~ 15 kW / 20 HP at 400V 50Hz Rated Operational Voltage (Uₑ) Up to 690 V AC, 50/60 Hz Rated Thermal Current (Iᵼₕ) 40 A Poles 3 (Main Contacts) Coil Control Voltage AC - The specific voltage (e.g., 24V, 110V, 230V, 400V, 500V AC) must be confirmed by the order code sticker on the device itself. The "-01" suffix is consistent with an AC coil. Utilization Categories AC-3: Squirrel-cage motors (starting, switching off during running) AC-1: Non-inductive or slightly inductive loads (e.g., heaters) Electrical Durability Millions of operations (dependent on load) Mechanical Durability ~ 10 - 15 million operations Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Mounting Snap-on mounting on 35 mm symmetrical top-hat rail (DIN rail) or via screw mounting using the integrated feet. Connection Cage Clamp terminal technology for easy wiring without tools. Auxiliary Contacts Typically, at least 1 normally open (NO) auxiliary contact is included as standard and can be mounted on the front. Additional auxiliary contact blocks (e.g., DILEM...), mechanical interlocks, and timer modules are available as accessories.

Key Parameters Category Description / Value Product Line Eaton Inductive Proximity Sensors Series LS-S02 Sensor Type Inductive (detects metallic objects) Sensing Distance 12 mm Housing Material PTFE (Teflon) Housing Size / Thread M30 x 1.5 Mounting Shielded (Flush-mountable) Output Configuration NPN, Normally Open (NO) (as indicated by "ZBZ") Connection 4-pin M12 quick-disconnect connector Rated Operating Voltage Typically 10-30 V DC Output Current Typically ≤ 200 mA Standard IEC 60947-5-2

Key Parameters Category Description / Value Product Line Eaton Inductive Proximity Sensors Series LS-S02 Sensor Type Inductive (detects metallic objects) Sensing Distance 2.4 mm Housing Material PTFE (Teflon) Housing Size / Thread M8 x 1 Mounting Unshielded (Non-flush mountable) Output Configuration NPN, Normally Open (NO) (as indicated by "ZBZ") Connection 4-pin M12 quick-disconnect connector Rated Operating Voltage Typically 10-30 V DC Output Current Typically ≤ 200 mA Standard IEC 60947-5-2

Key Parameters Category Description / Value Product Line Eaton Inductive Proximity Sensors Series LS-S02 Sensor Type Inductive (detects metallic objects) Sensing Distance 23 mm Housing Material PTFE (Teflon) Housing Size / Thread M30 x 1.5 Mounting Shielded (Flush-mountable) Output Configuration NPN, Normally Open (NO) (as indicated by "ZBZ") Connection 4-pin M12 quick-disconnect connector Rated Operating Voltage Typically 10-30 V DC Output Current Typically ≤ 200 mA Standard IEC 60947-5-2

Key Parameters Category Description / Value Product Line Eaton ETR (Electronic Thermal Relay) Series ETR4 Rated Operational Current (Iₑ) Setting Range 55 - 70 A (Continuously adjustable within this range) Rated Operational Voltage for Main Circuit Up to 690 V AC, 50/60 Hz Power Supply for Electronics AC, sourced from the main current path (Self-powered) Tripping Class Class 10 (Standard tripping characteristic for general motor starting) Protection Functions • Thermal Overload Protection (based on I²t characteristic) • Phase Failure / Unbalance Protection • Jam / Stall Protection (short-time pickup setting) Ambient Compensation Yes (Provides stable performance across a range of ambient temperatures) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 Mounting Snap-on mounting onto compatible Eaton contactors (e.g., DILB, DILM series). Auxiliary Contacts • 1 Normally Closed (NC - 95-96): Trip contact, used to break the control circuit. • 1 Normally Open (NO - 97-98): Alarm contact, can be used for signaling. Test & Reset TEST button to simulate a fault, and STOP/RESET button.

Key Parameters Category Description / Value Product Line Eaton ETS (Time Relays) Series ETS4 Function Star-Delta Changeover (with two independently adjustable times) Adjustable Times • T1 (Star Time): Adjustable range, e.g., 0.05s - 100h • T2 (Pause Time): Adjustable range, e.g., 0.05s - 100h Supply Voltage Wide range, typically 24-240V AC/DC (The exact range must be confirmed by the order code sticker on the device itself). Output Contacts Typically 2 Changeover (CO) Contacts (e.g., 2 NO/NC contacts) with a specific switching capacity. Time Setting Digital via rotary switches or pushbuttons with an LED display. Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Connection Screw terminals or spring-cage terminals. Standards Compliance IEC/EN 60947-5-1

Key Parameters Category Description / Value Product Line Eaton EASY (Smart Relays) Series EASY800 Model / CPU EASY822 Power Supply DC (Typical rating: 24 V DC. Must be verified on the device). Integrated Function PID Temperature Controller (as indicated by "TC") Digital Inputs 12 (The exact number and type - AC/DC sourcing/sinking - depends on the specific -DC variant). Digital Outputs 8 (Typically relay outputs). Analog Inputs 2 for temperature sensors (e.g., thermocouple Type J/K or Pt100/1000). Analog Output 1 for the PID control output (e.g., 0-10V or 0/4-20mA). Programming Via EASY-SOFT software or directly on the device using the built-in display and buttons. Display Integrated LCD for showing values, status, and messages. Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Communication Optional communication modules (e.g., for Ethernet, AS-Interface, IO-Link) can be added.

Key Parameters Category Description / Value Product Line Eaton NZM2 Accessories Compatible Breakers NZM2 Motor Protection Circuit Breakers (e.g., NZM2-XV... series) Function Analog Setting Digitization Module Input Reads the physical position of the breaker's analog setting potentiometers. Output Digital data representing the breaker's current settings. Communication Interface Typically a System Interface (SI) or other proprietary digital bus used by Eaton's control systems (e.g., for integration with Eaton's XV-SI system interface modules). Mounting Designed to be mounted directly onto the compatible NZM2 breaker. Purpose • Setting Read-back: Allows a control system to read the actual protection settings configured on the breaker. • Condition Monitoring: Verifies that the settings have not been manually changed without the control system's knowledge. • Documentation: Provides digital documentation of protection parameters.

Key Parameters Category Description / Value Product Line Eaton DILM Accessories Compatible Contactors DILM32 Series Module Type Timer Module Timer Function Star-Delta Changeover (with adjustable time delay) Power Supply Derived from the main contactor coil circuit. Mounting Snap-on mounting directly onto the compatible DILM32 contactor. Connection Integrated connection via the snap-on mechanism; no external wiring required for power. Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

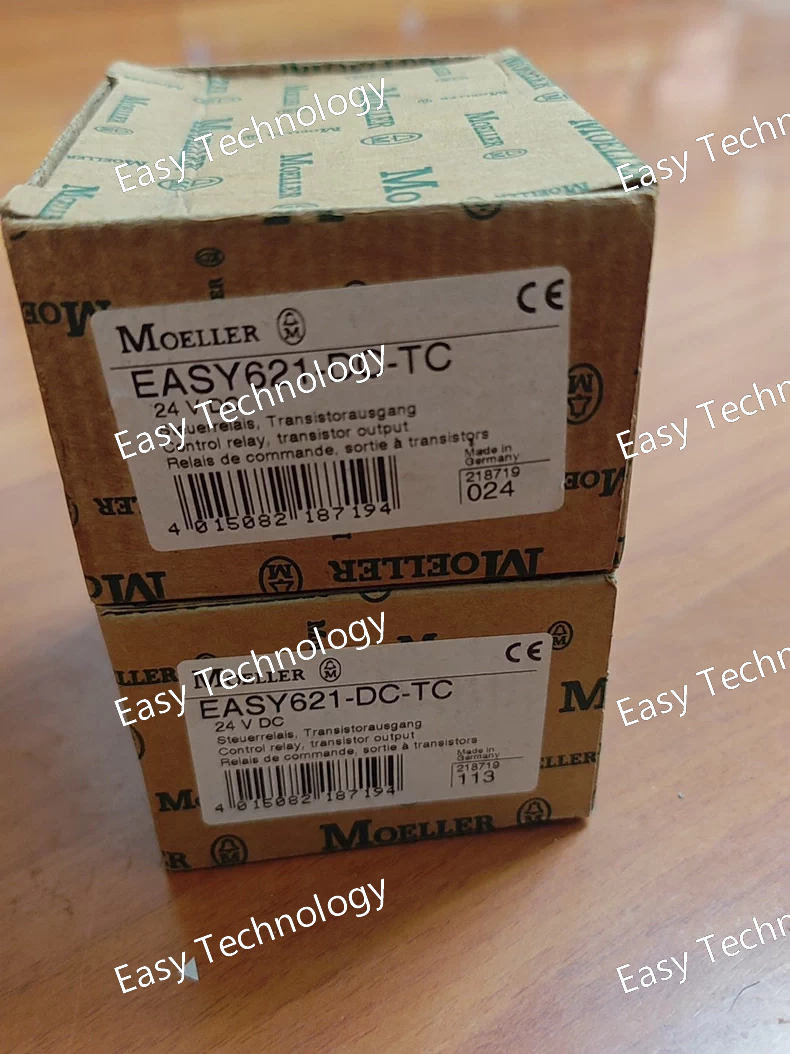

Key Parameters Category Description / Value Product Line Eaton EASY (Smart Relays) Series EASY600 Model / CPU EASY621 Power Supply DC (Typical rating: 24 V DC. Must be verified on the device). Integrated Function PID Temperature Controller (as indicated by "TC") Digital Inputs 8 Digital Outputs 6 (Typically relay outputs). Analog Inputs 2 for temperature sensors (e.g., thermocouple Type J/K). Analog Output 1 for the PID control output (e.g., 0-10V or 0/4-20mA). Programming Via EASY-SOFT software or directly on the device using the built-in display and buttons. Display Integrated LCD for showing values, status, and messages. Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail). Communication Optional communication modules (e.g., for Ethernet, AS-Interface, IO-Link) can be added.
