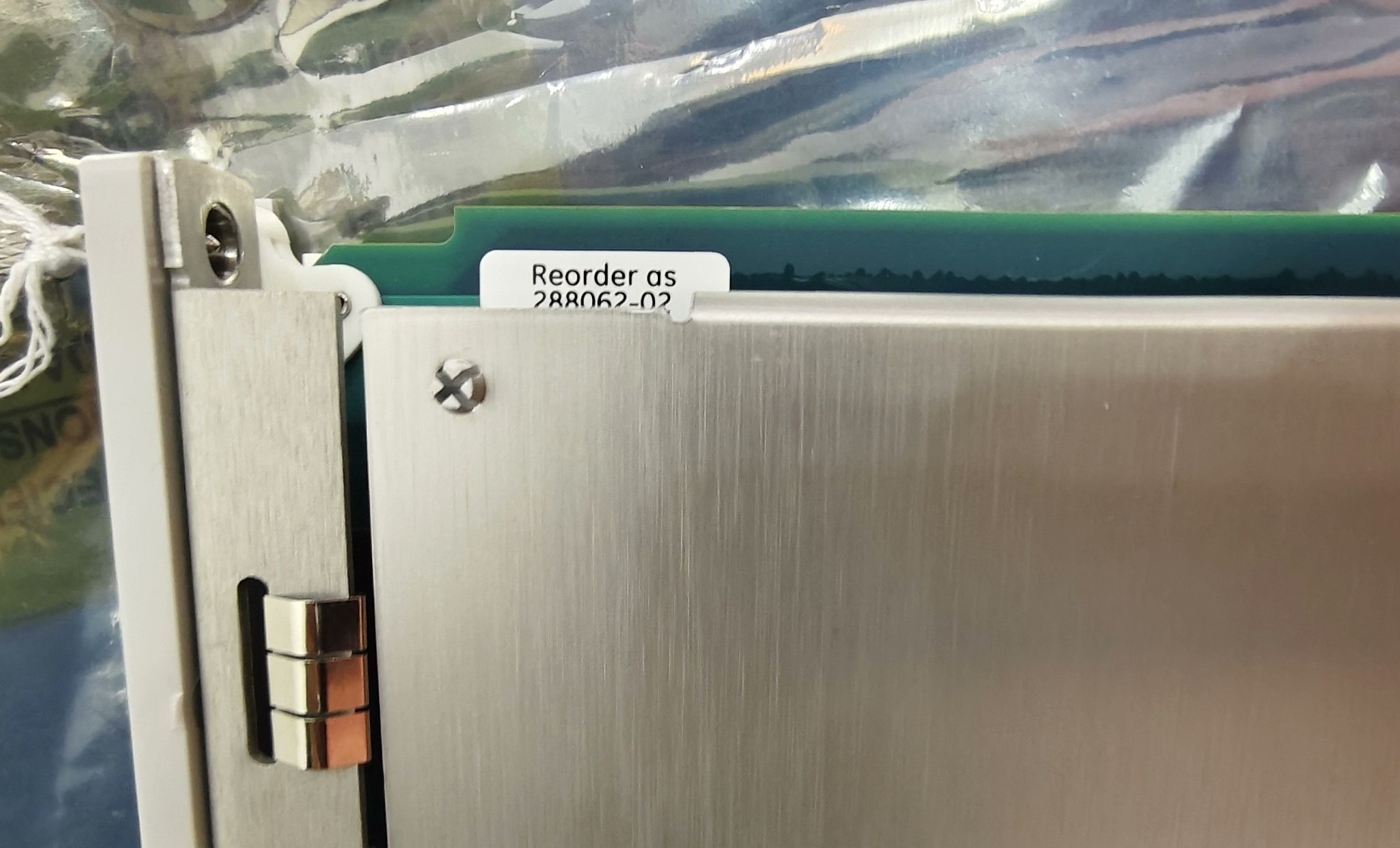

Model: Bently Nevada 3500/60-05
Series: 3500 Series Machinery Protection System
Type: 6-Channel Temperature Monitoring Module
Compatibility: For Bently 3500 rack (API 670 compliant)
Function: Temperature signal conditioning, alarm monitoring, sensor diagnostics
Input Types: RTD (Pt100) & Thermocouple (TC) selectable via software
I/O Version: 3500/60-05 (RTD/TC non-isolated I/O module)
Usage: Bearing temp, motor windings, steam, compressor, process temps
Channels: 6 independent temperature input channels
Input Impedance: >10 MΩ per lead
RTD Support:
100Ω Platinum (3-wire/4-wire, α=0.00385)
Range: -200°C to +850°C (-328°F to 1562°F)
Thermocouple Types: E, J, K, T
Type E: -100°C to +1000°C
Type J: 0°C to +760°C
Type K: 0°C to +1370°C
Type T: -160°C to +400°C
Isolation: Non-isolated (standard I/O)
Alarm: 2 per channel (Warning/Danger), user-programmable
Accuracy: ±1°C at 25°C (standard rack)
Power: ~7W nominal (from 3500 rack)
Communication: Rack-internal (via 3500 backplane)
Dimensions: 241.3 × 24.4 × 99.1 mm (H×W×D)
Weight: Approx. 0.45 kg (1.0 lb)
Mount: 1 full-height slot in 3500 rack
Operating Temp: -30°C to +65°C (-22°F to 150°F)
Storage Temp: -40°C to +85°C
Design: Industrial, for harsh environments
Microprocessor-based, software-configurable
Sensor fault detection (open/short circuit)
LED status indicators (OK, BYPASS, CHANNEL)
Non-isolated RTD/TC mixed input capability
TMR (Triple Modular Redundant) compatible
