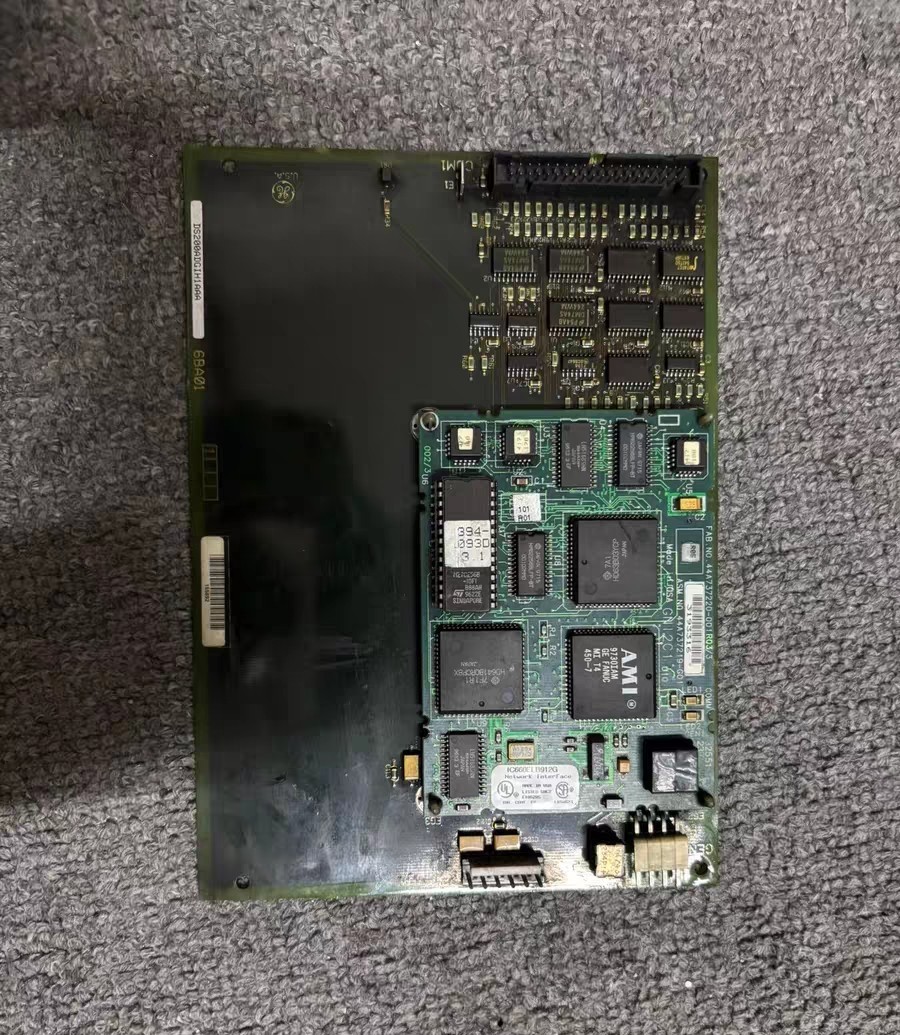

DS200ADGIH1AAA Full Technical Parameters (English Version)

Basic Information

• Manufacturer: General Electric (GE)

• Product Series: Speedtronic Mark V Turbine Control System

• Model Number: DS200ADGIH1AAA

• Product Type: Auxiliary Interface Board / I/O Expansion Module





Core Functions

• Primary Role: Provides auxiliary I/O interfacing, signal conditioning, and system diagnostics support for Mark V control systems

• Signal Processing: Handles analog/digital signal conversion and data transmission between field devices and main controller

• System Integration: Facilitates communication between control system components and external equipment

• Diagnostics: Equipped with multiple test points for circuit testing and troubleshooting

Physical Specifications

• Dimensions: 8 in (W) x 6 in (L) (203 mm x 152 mm)

• Weight: Approx. 0.5–2.0 kg

• Form Factor: PCB module for rack-mounted installation

• Mounting: Screw-mounted in drive board cabinet (4 mounting points)

• Protection: Conformal coating (DC2K type), IP20 rated

Electrical Parameters

• Input Voltage: 24 VDC or 125 VDC

• Output Voltage: 24 VDC

• Power Supply: 24 VDC industrial power input

• Isolation: Channel-to-channel and power isolation

• Operating Temp: -40°C to +70°C (industrial wide temp)

• Storage Temp: -55°C to +85°C

• Relative Humidity: 5–95% (non-condensing)

Interfaces & Connectors

• Main Connector: 40-pin connector

• Aux Connector: 6-pin connector

• Configuration: 60 jumpers for function setting

• Test Points: Multiple onboard test points

• Communication: Proprietary GE bus, supports RS485/Modbus/Ethernet (optional)

I/O Features

• Analog I/O: 8 analog input/output channels (voltage/current/power)

• Digital I/O: 4 discrete input/output points

• Accuracy: Analog input precision ±0.1%

• Signal Types: 4–20 mA, 0–10 V, TTL digital levels

Compatibility & Applications

• Target Systems: GE Speedtronic Mark V turbine controls

• Applications: Gas/steam turbine control, power generation, industrial process automation

• Certifications: CE, UL, CSA (industrial standards)

• Reliability: Industrial-grade components, MTBF > 500,000 hours
