CPU Type:Compact

Operating Voltage:24V DC

Memory Capacity:32K bytes

Input/Output Channels:16 DI / 16 DO

Analog Inputs/Outputs:4 AI / 1 AO

Power Supply:Integrated 24V DC

Working Memory:32K bytes

Programming Language:Ladder Logic, Structured Text

Communication Interfaces:MPI Interface

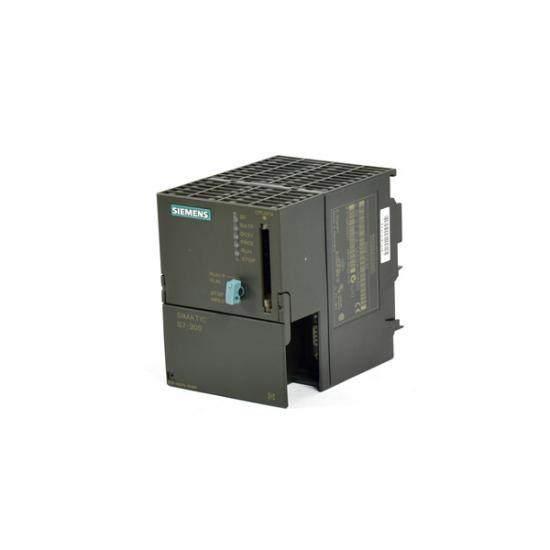

    The SIEMENS 6ES7314-1AE04-0AB0 CPU Module boasts a compact yet robust design, perfectly suited for space-constrained industrial environments. Its 16 MHz processing speed ensures swift execution of complex control tasks, making it a reliable choice for high-demand applications.

    Equipped with an integrated 24V DC power supply, this module eliminates the need for external power sources, simplifying installation and reducing maintenance costs. The inclusion of 16 digital inputs (DI) and 16 digital outputs (DO) provides ample connectivity for various industrial sensors and actuators.

    For precision and accuracy, the module features 4 analog inputs (AI) capable of measuring voltages and currents, along with 1 analog output (AO) for controlling motors or other devices requiring fine-tuned adjustments. This capability enhances operational efficiency and precision in manufacturing processes.

    The module’s 32 KB working memory ensures sufficient storage for program data and variables, enabling the execution of sophisticated control algorithms without the need for external memory cards. This feature contributes to a more streamlined system architecture and easier maintenance.

    Featuring an MPI communication interface, the SIEMENS 6ES7314-1AE04-0AB0 allows for seamless integration with other Siemens products and third-party devices, facilitating a cohesive industrial ecosystem. This compatibility ensures a smooth setup process and reduces the complexity of system integration.
