Description:

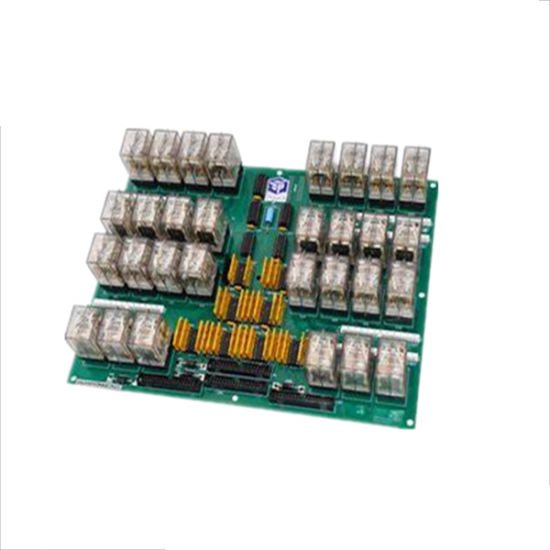

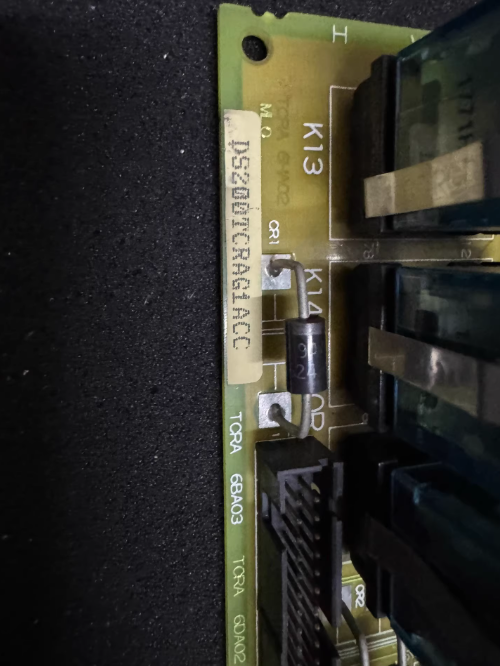

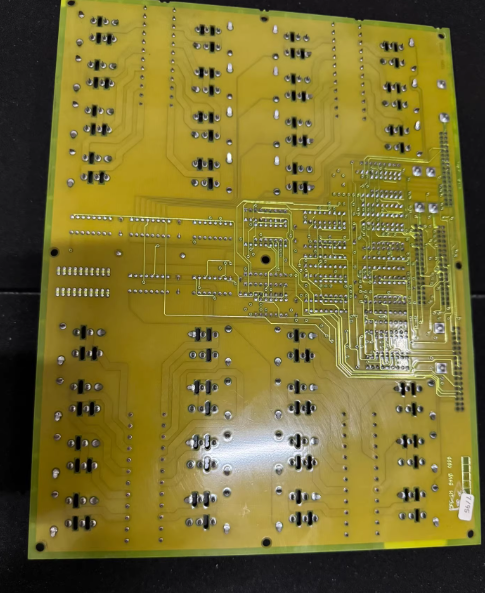

• Model: GE DS200TCRAG1ACC

• Type: Turbine Control Module (TCR)

• Part of the Mark V Series: This series is widely used in power plants for controlling turbine processes.

• Function: The module is responsible for handling the control functions in turbine systems. It interacts with other control components to monitor turbine performance, respond to operational changes, and ensure safe operation.

• Application: Typically used in power generation plants for controlling turbine operation and processes, managing alarms, and communicating with other system components.

Features:

• Robust Design: Built to withstand industrial environments.

• High-speed processing: Designed for real-time turbine control.

• Communication: Facilitates communication between different control modules for synchronized operation.

• Integration with Other Systems: Supports integration with DCS (Distributed Control Systems) and SCADA systems for process monitoring and control.

Key Specifications/Parameters:

• Input/Output: Multiple inputs/outputs for interfacing with sensors and actuators.

• Operating Voltage: Typically operates on 24V DC or 48V DC, depending on specific plant configurations.

• Communication Ports: May include Ethernet, Modbus, or other industrial communication protocols.

• Temperature Range: Designed to operate in high-temperature industrial settings, typically in the range of 0°C to 60°C.

• Power Consumption: Relatively low power consumption, depending on the configuration and connected load.

• Size/Dimensions: Varies, but typical dimensions are designed to fit into standard industrial control cabinets.

• Mounting: Typically mounted on a DIN rail or similar standardized mounting systems.

Compatibility:

• Turbine Types: Compatible with a wide range of GE and third-party turbines, including gas, steam, and combined-cycle turbines.

• Other GE Components: Works seamlessly with other GE Mark V components for a fully integrated control solution.
